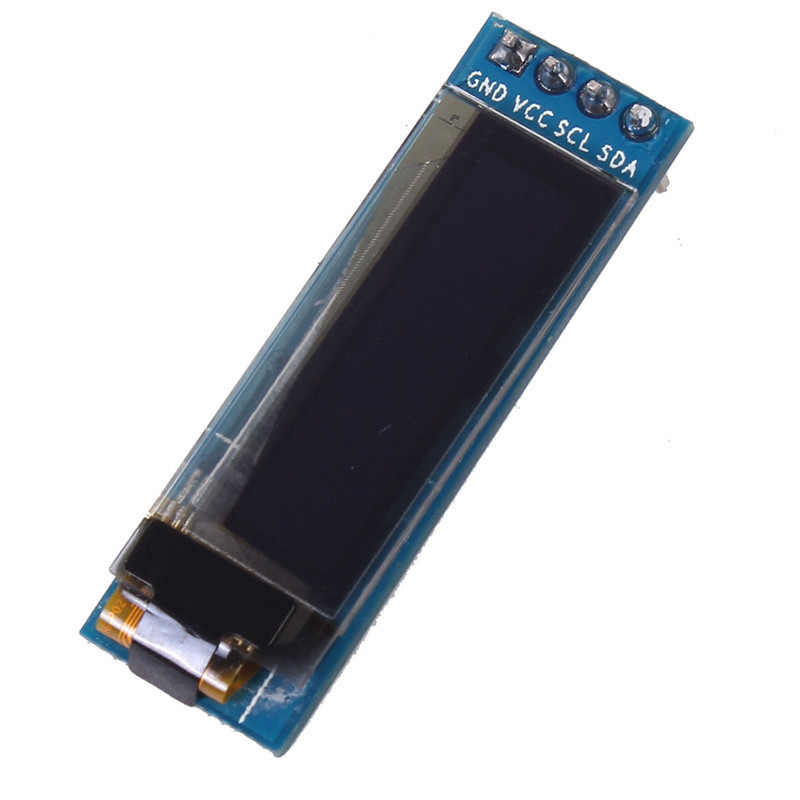

0.91inch OLED Display For Arduino White/Blue 128x32 OLED LCD IIC I2C

Description:

• 128×32 is a OLED Display based on SSD1306 Display controller chip. The display is mounted on an easy to solder PCB. The SSD1306 Display interfaces to microcontrollers through a I2C serial bus interface.

• OLED Technology, Self-luminous, need no back-light (consumes less energy)

• High resolution: 128 * 32

• Viewing angle:> 160 degree

• Supports various microcontrollers: Fully compatible For Raspberry Pi, Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

• Ultra-low power consumption: full screen lit 0.08W

• Operating Voltage: DC 3.3 ~5v

• Working Temperature: :-30 ~70 celcius

• Module Size: 38.0MM * 11.9MM * 3.9MM (excluding header height)

• I2C/IIC Interface, needs only 2 IO pins.

• 4.7k pull-up resistors are needed on both SDA and SCL lines.

• Driver IC: SSD1306

• Pixel color: White / blue

Pinouts：

• GND

• VCC (DC 3.3 ~5v)

• SCL

• SDA

Documents and Downloads：

• SSD1306 Display Controller Datasheet

• For Arduino Library

• Adafruit SSD1306 library also install Adafruit GFX library

• ARM Library

• AVR Library

Important Note：

• Make sure you are correctly setting the contrast value of the LCD (by writing to command register ) or you will be able to see very dim or nothing at all on the LCD.

• When you are using u8glib, please make sure that you un-comment following statement : //U8GLIB_SSD1306_128X32 u8g(U8G_I2C_OPT_NONE|U8G_I2C_OPT_DEV_0); // I2C / TWI

• In case of connection with NodeMCU Modules please follow following default pinouts with Adafruit library : I2C-SDA – D2/GPIO4,I2C-SCL – D1/GPIO5
