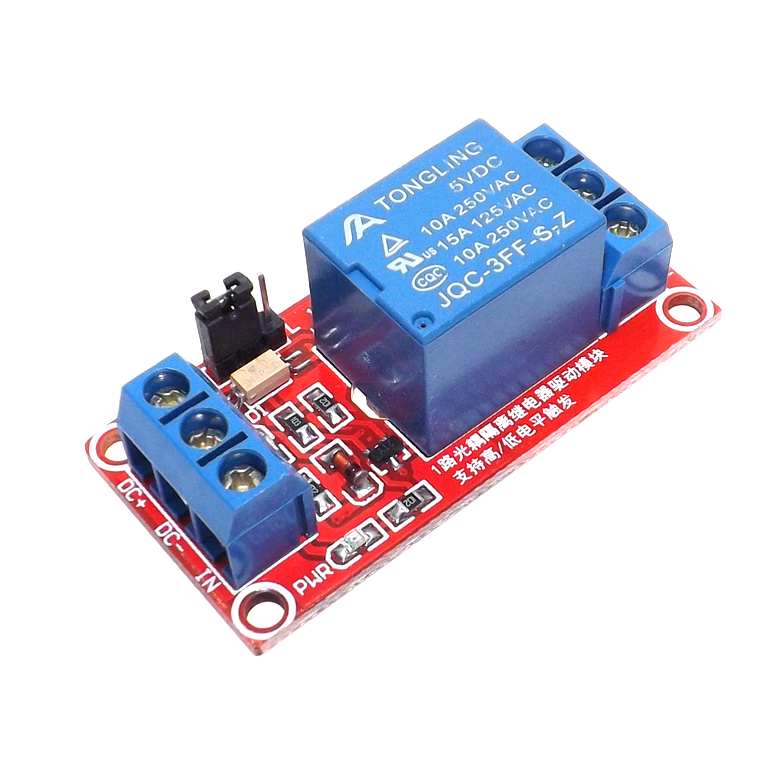

1 Channel Relay Module Board 5V 9V 12V 24V with Ptocoupler Isolation High and Low Level Trigger

Price:

$ 1.38
USD
  2. Shop
  3. Modules & Sensors
  4. 1 Channel Relay Module Board 5V 9V 12V 24V with Ptocoupler Isolation High and Low Level Trigger
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.07
$ 1.07
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.15
$ 5.15

1 Channel Relay Module Board 5V 9V 12V 24V with Ptocoupler Isolation High and Low Level Trigger

https://www.qskj.cc/web/image/product.template/758/image_1920?unique=d8c7308
(0 review)

$ 0.59 0.59 USD $ 0.59

¥ 4.00

Not Available For Sale

  • Voltage

This combination does not exist.

Contact Us
Categories :
Relay Modules
SKU :
181019
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
K70 5V 1 Channel Low Level Trigger Expansion Board Relay Module
K70 5V 1 Channel Low Level Trigger Expansion Board Relay Module
$ 0.69 $ 0.69
8 Channel Relay Control Module with Optocoupler Isolation Support High and Low Level Trigger 5V 12V 24V
8 Channel Relay Control Module with Optocoupler Isolation Support High and Low Level Trigger 5V 12V 24V
$ 4.61 $ 4.61
8 Channel Relay Module 5V 10A Optocoupler Isolating
8 Channel Relay Module 5V 10A Optocoupler Isolating
$ 4.38 $ 4.38
LCUS-1 Type USB Relay Module USB Intelligent Control Switch
LCUS-1 Type USB Relay Module USB Intelligent Control Switch
$ 5.33 $ 5.33
24V-380V 40A 250V SSR-40 DA Solid State Relay Module 3-32V DC To AC
24V-380V 40A 250V SSR-40 DA Solid State Relay Module 3-32V DC To AC
$ 4.84 $ 4.84
Q55 1 Channel 5V Low level Solid State Relay Module Fuse Solid State Relay 250V 2A
Q55 1 Channel 5V Low level Solid State Relay Module Fuse Solid State Relay 250V 2A
$ 1.38 $ 1.38

Features:

  • Normally open interfaces Maximum load: AC 250V/10A, DC 30V/10A;

  • Using SMD optocoupler isolation, driving ability, stable performance; trigger current 5mA;

  • The module Operating voltage 5V/9V/12V/24V;

  • The module can be high or low by a jumper setting trigger;

  • Fault-tolerant design, even if the control line is broken, the relay will not operate;

  • The power indicator (green), the relay status indicator (red)

  • The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient

  • Module size: 50mm*26mm*18.5mm (L*W*H)
