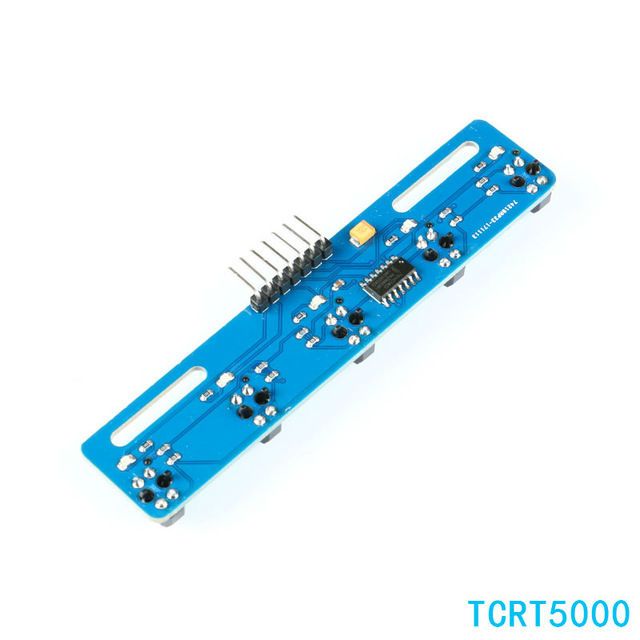

    TCRT5000L 5-Way Tracking Sensor Module Infrared Sensor Board TCRT5000 White Black Line Recognition Sensors 74HC14D DIY

    Product Parameter :

    • Chip: 74HC14D

    • Working voltage: 3.3V ~ 5V

    • Output mode: digital signal

    • Measuring distance: 1CM ~ 1.5CM

    • Detection probe: TCRT5000L

    • Detection signal: detection black line output low, white line detection is high, beyond the detection range output low

    • LED status: Detection black line LED off, white line detection LED light

    Connector:

    • VCC: VCC is the power input port, which could access 3.3V ~ 5V voltage

    • GND: GND is the negative input of the power supply

    • OUT1 ~ 5:OUT is the signal output port, MCU link I / O port
