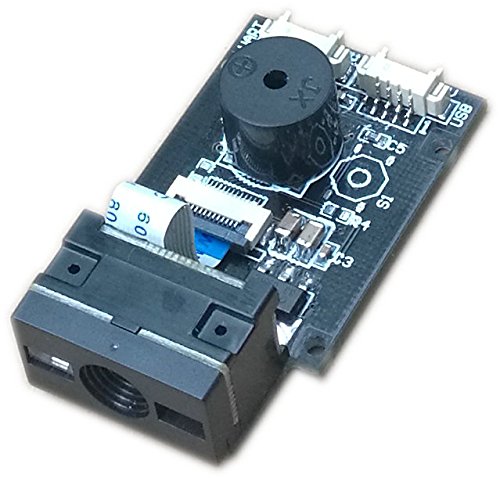

GM65 High Performance Hot Handheld Android USB 2D Scanner Barcode and QR code PDA Scanner Module
Features:
USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer
High-efficiency recognization and high upload speed for improving your working efficiency
With buzzer for reminding you that the scanning successfully or not
Compatible with USB and UART interface
Over 180 configurable options
Macro support replace a string in the bar code with another
Programmable preamble postamble and termination strings
Superior reading performance utilizing advanced decoding algorithms
PERFORMANCE PARAMETERS
Decoding Ability
1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect
2D: PDF417,QR Code ,Data Matrix ect.
Read code time for once: 3s, Parameter:0.1-25.5s; step-size: 0.1s; 0 means no time limited
Reading interval: 1S, Parameter:0.1-25.5s; step-size: 0.1s; 0 means no time limited
Output: GBK, GBK,UNICODE, BIG5
Interface: USB KBW, USB KBW,serial port,USB VCom
Serial mode: Read code time for once,5s,Parameter:0.1-25.5s; step-size: 0.1s; 0 means no time limited
Resolution:648x 488
Scanning angle: 35°(Inclination), 28°(Elevation)
