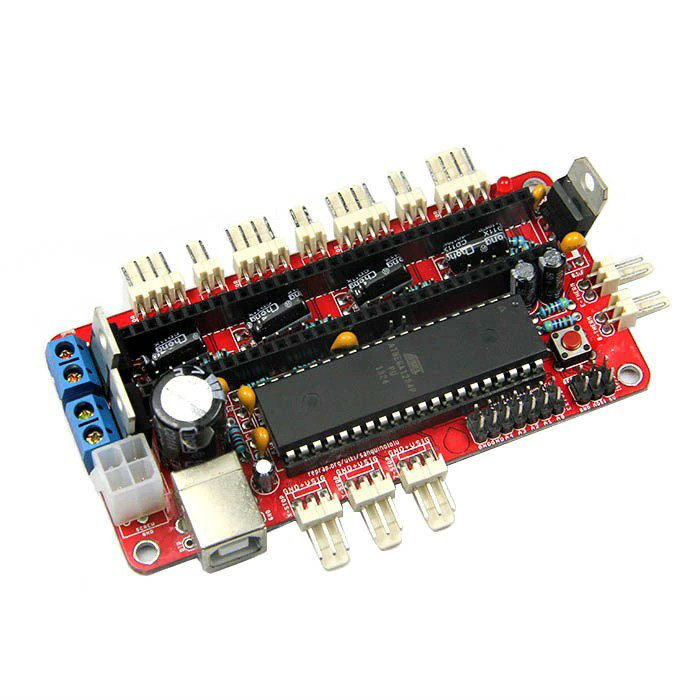

Brand Sanguinololu Ver1.3a 3D Printer Motherboard Main Controller Panel Driver Board

Feature:

• Supports multiple communication configuration - two thermistor circuit connector - 2 N-MOSFET extruder / bed, or any - selectable 12V (or supply voltage) / 5V voltage stopper - edge connector make right angle connector - 13 extra pin can be used to expand and develop - 6 analog and 8 digital, has more features, also supports SD.

• Support multiple power configurations - Logic and electric motor to provide an ATX power (hard disk required MOLEX connector, and a 4pin ATX connector optional extra 12v/supply voltage) - the logic provided by the USB bus, an optional on-board voltage regulator (MOLEX connect the drive can not be installed at the same time) - 7-35V5mm screw terminal

• Small board design - as 100mm x 50mm (4 "× 2")

• Sanguino clone, Atmel's ATMEGA644P - ATMEGA1284 backward compatible!

• UART1 (RX and TX)

• I2C (SDA and SCL)

• SPI (MOSI, MISO, SCK)

• PWM pin (1)

• Analog I / O (5)
