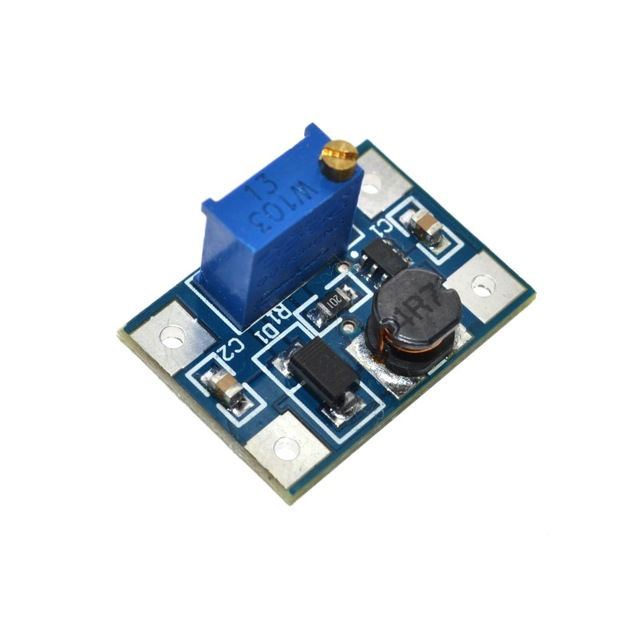

2A SX1308 DC-DC Step Up Adjustable Power Module Step Up Boost Converter

Price:

$ 2.26
USD
  2. Shop
  3. 2A SX1308 DC-DC Step Up Adjustable Power Module Step Up Boost Converter
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.06
$ 1.06
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.10
$ 5.10

2A SX1308 DC-DC Step Up Adjustable Power Module Step Up Boost Converter

https://www.qskj.cc/web/image/product.template/912/image_1920?unique=e9a865c
(0 review)

$ 0.30 0.3 USD $ 0.30

¥ 2.20

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Power Modules
    SKU :
    180655
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    L298N Motor Driver Controller Board Module Dual H Bridge 1AA700034
    L298N Motor Driver Controller Board Module Dual H Bridge 1AA700034
    $ 2.26 $ 2.26
    4A 4/75/24V to 0/93/18V KJ369 DC DC Step Down Power Module
    4A 4/75/24V to 0/93/18V KJ369 DC DC Step Down Power Module
    $ 2.41 $ 2.41
    Mini-360 Aircraft Step-Down DC Power Supply On-Board Power Replace Modules Better Than LM2596
    Mini-360 Aircraft Step-Down DC Power Supply On-Board Power Replace Modules Better Than LM2596
    $ 0.36 $ 0.36
    1200W DC-DC Boost Converter Power Supply Module With Large Heat Sink Design
    1200W DC-DC Boost Converter Power Supply Module With Large Heat Sink Design
    $ 15.07 $ 15.07
    TP4056 5V 1A Special Lithium Battery Charging Board Module for Arduino DIY
    TP4056 5V 1A Special Lithium Battery Charging Board Module for Arduino DIY
    $ 0.18 $ 0.18
    HLK-PM01 Ultra-Small Power Isolate Switch Power Module 220V to 5V
    HLK-PM01 Ultra-Small Power Isolate Switch Power Module 220V to 5V
    $ 2.26 $ 2.26

    Description:

    • WAVGAT SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

    Features:

    • Oscillation frequency 1.2MHz

    • Efficiency is as high as 95%

    • Circuit has short circuit protection, overheating protection function

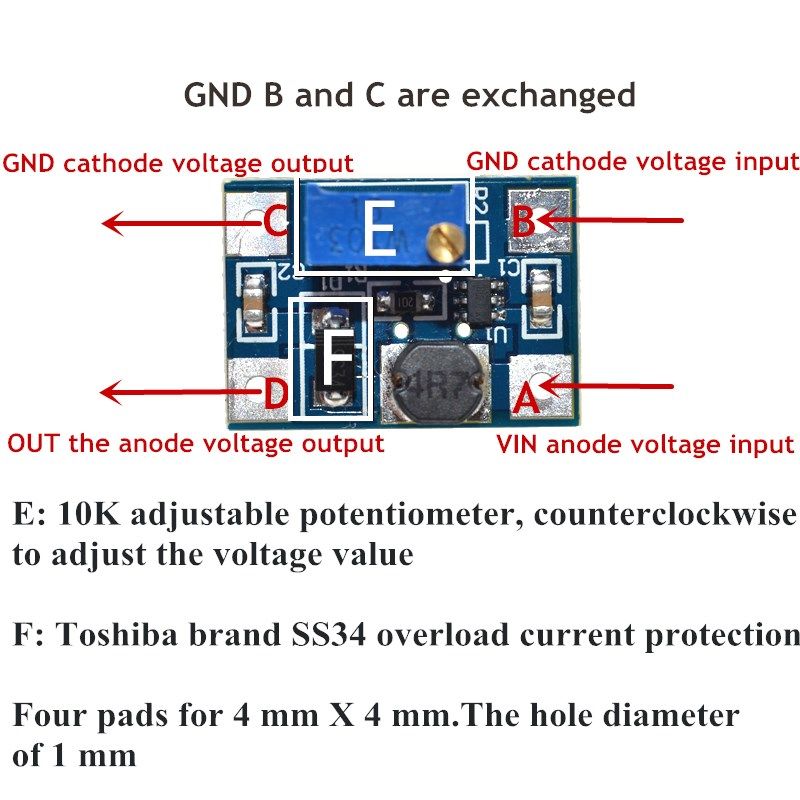

    • 10k to adjust potentiometer, adjust the output voltage

    Parameters:

    • Maximum input voltage: DC 2-24V

    • Maximum output voltage: DC 2-28V

    • Switching frequency: 1.2MHz

    • Maximum current output: 2A
