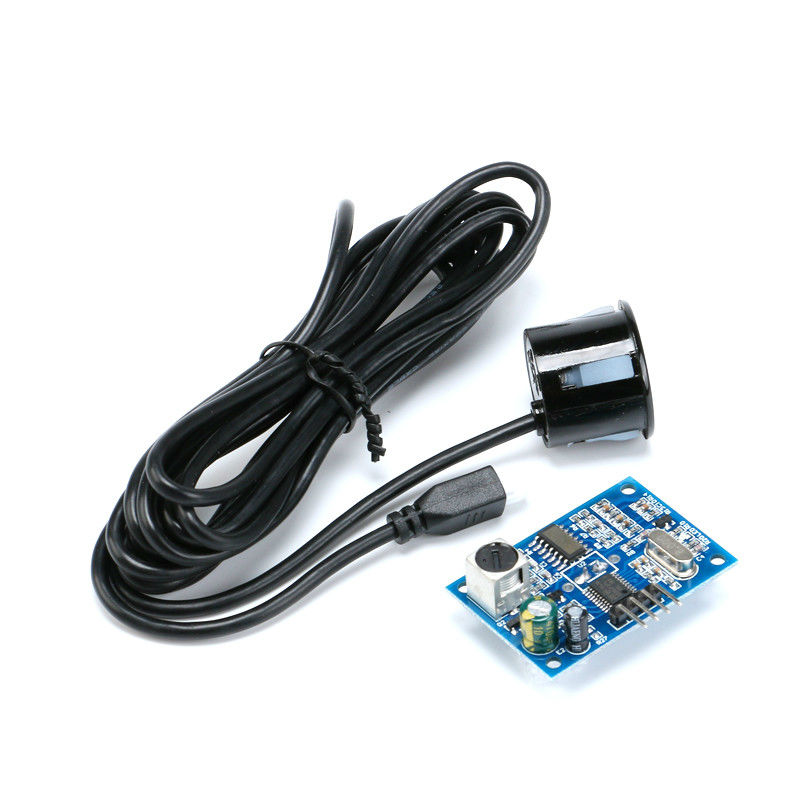

JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor for Arduino

https://www.qskj.cc/web/image/product.template/3052/image_1920?unique=711d32c
(0 review)

6.03 6.03 USD 6.03

¥ 44.00

Not Available For Sale


    This combination does not exist.


    SKU :
    180666
    Share :
    100% original guarantee
    Return within 30days
    Free delivery on all orders

    Electrical properties

    • Electrical parameters:  JSN-SR04T

    • Operating voltage:  DC 3 ~5.5V

    • Quiescent current:  < 8mA

    • Acoustic emission frequency:  40khz

    • Farthest range: 600cm

    • Recent range: 20cm

    • Distance measurement accuracy: ± 1cm

    • Resolution: 1mm

    • Measuring angle: 75 degrees

    • Input trigger signal: TTL pulse above 10uS

    • Serial send command: 0X55

    • Output echo signal: Output pulse width level signal, or TTL

    • 3-5.5V (power positive)

    • Trig (RX) RX

    • Echo (output) TX

    • GND (power supply negative

    • Product Size: L42 * W29 * H12 mm

    • Working temperature: -20 ℃ - +70 ℃

    • Product color: PCB board is blue

    Product Features

    • 1.Small size, easy to use

    • 2. low power consumption

    • 3. High accuracy

    • 4, detection of blind spots, farther away

    • 5, the output method of diversification, pulse width output, serial output

    Note:

    • This module should not be charged connection, to live connection, then let the module first GND connected, otherwise it will affect the normal work of the module.

    • Ranging, the measured object area of not less than 0.5 square meters and the plane as required to smooth, otherwise affect the measurement results.

    The default working mode is Mode 1.

    • Mode 1: R27 = open that is not welding. The pattern is described below

    • Basic working principle:

    • Using IO port TRIG trigger range, to a minimum of 10us high letter.

    • Module automatically send 8 40khz square wave, automatically detect whether the signal back;

    • There is a signal to return, through the IO port ECHO output a high level, the high level of continuous time is the ultrasound

    • From the time of launch to return. Test distance = (high time * sound velocity (340M / s)) / 2;

    • When the module is triggered, if no echo is received (the reason is more than the measured range or the probe is not positive On the measured object),

    • ECHO port will automatically become low after 60MS, marking the end of the measurement, regardless Power or not.

    • LED indicator, LED non-power indicator, it will receive the trigger signal after the module, this When the module is in working condition.

    • Only need to provide a pulse above 10uS trigger signal, the module will be issued within 8 40kHz cycle levels and detect echo. The echo signal is output once an echo signal is detected. Reverberations

    • The pulse width of the pulse is proportional to the measured distance. Thereby by transmitting a signal to the received echo signal time interval

    • Can calculate the distance. Formula: uS / 58 = cm or uS / 148 = inches; or: distance = high time *Sound speed (340M / S) / 2;

    • The recommended measurement period is 60ms or more to prevent the impact of the transmitted signal on the echo signal.

    Mode 2: R27 = 47K is the welding 47K resistance. The pattern is described below

    • Serial output format for the TTL level, that: 100MS module for the cycle of automatic transmission

    • The value of the distance, in mm. Serial baud rate: 9600, n, 8,1.

    • Module power recognition, directly into the work mode, the module to conduct a distance every 100ms range,

    • And outputs one frame from the pin TX with four 8-bit data. The frame format is: 0XFF + H_DATA + L_DATA + SUM

    • 1.0XFF: for a frame to start the data, used to judge;

    • 2.H_DATA: the upper 8 bits of the distance data;

    • 3.L_DATA: the lower 8 bits of the distance data;

    • 4.SUM: data and, for the effect of its 0XFF + H_DATA + L_DATA = SUM (only low 8)

    • Note: H_DATA and L_DATA synthesize 16-bit data, that is, the distance in millimeters.

    • Description: The module outputs the nearest distance value in the dead zone. If the module does not measure data or is out of range Measured output 0.

    • LED indicator, LED non-power indicator, the module connected to work after the light, then the module is in Working state.

    Mode 3: R27 = 120K is the welding 120K resistance. In the serial port mode

    • Module power recognition, the module into the standby state, the serial output format for the TTL level, the serial port baud rate:

    • 9600, n, 8, 1. When the RX port receives the 0X55 instruction, the module starts a ranging and outputs from the pin TXOut of a frame with 4 8-bit data.

    • The frame format is: 0XFF + H_DATA + L_DATA + SUM

    • 1.0XFF: for a frame to start the data, used to judge;

    • 2.H_DATA: the upper 8 bits of the distance data;

    • 3.L_DATA: the lower 8 bits of the distance data;

    • 4.SUM: data and, for the effect of its 0XFF + H_DATA + L_DATA = SUM (only low 8)

    • Note: H_DATA and L_DATA synthesize 16-bit data, that is, the distance in millimeters

    • Description: The module outputs the nearest distance value in the dead zone. If the module does not measure data or is out of range Measured output 0.

    • LED indicator, LED non-power indicator, it will receive the 0X55 trigger signal in the module, this When the module is in working condition.
