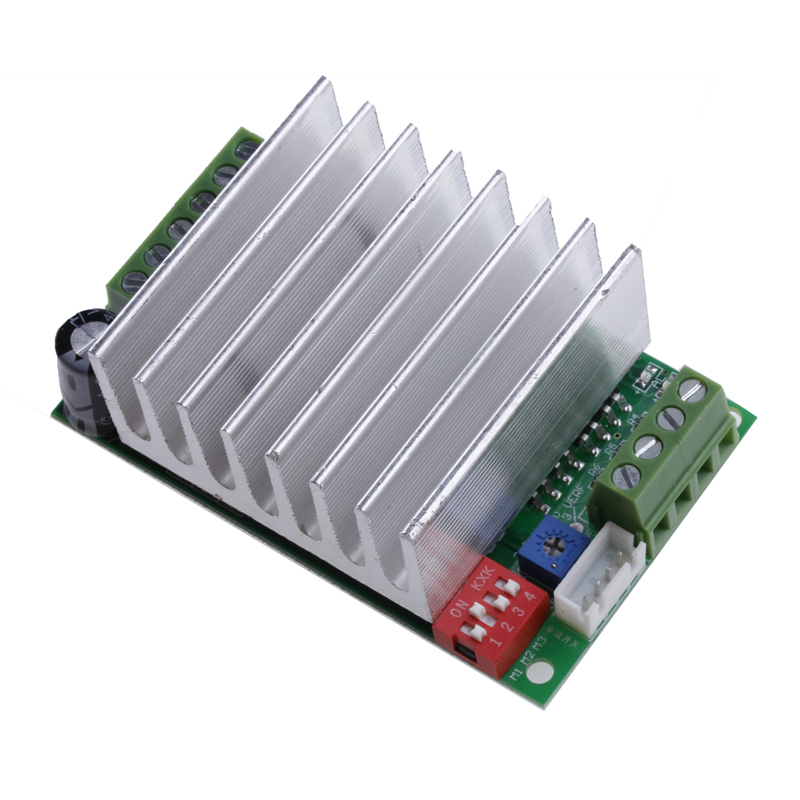

10-45V TB6600 Hybrid Stepper Motor Driver /Single Axis Controller Modules

Description

• Material: Electrical Components

Features:

• This is a high-power, cost-effective Motor Driver

• High current 4.5A, high voltage 45V, output short circuit protection, superior performance!

• Automatic half current function. And a semi-automatic flow switch, easy to use.

• The use of high-speed optical coupling 6N137 ensure high-speed without losing step.

• Used to increase the heat sink, good heat dissipation.

• Using common anode input mode, there are two input terminals, wiring more convenient.

• For 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.

• Automatic half current function.

• Low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection

Specifications:

• Type: TB6600

• Operating voltage DC 10V-45V. DC32V
