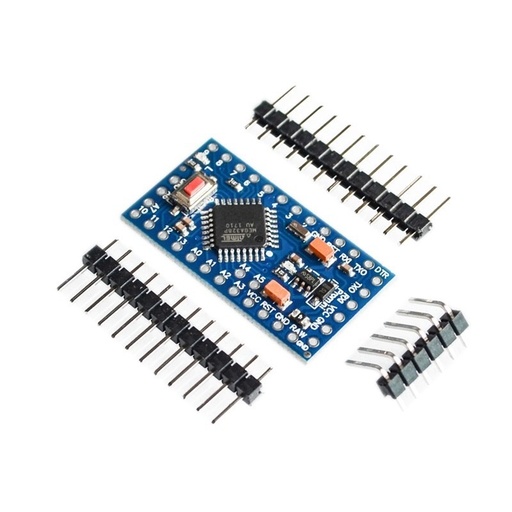

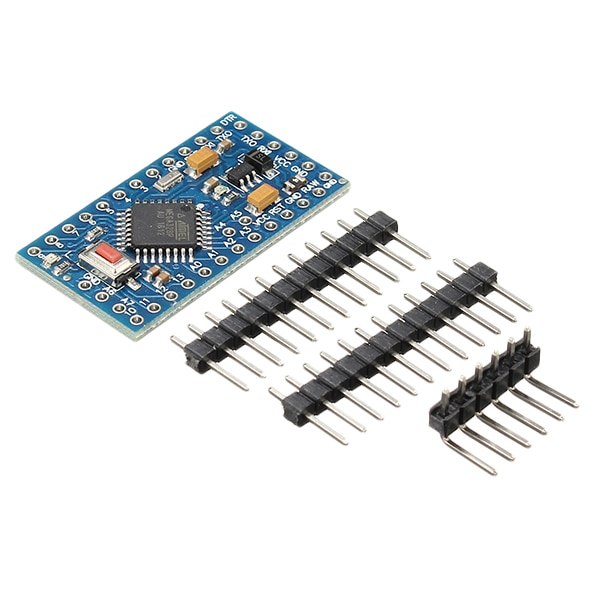

Pro Mini 3.3V 8MHZ Atmega328 / Atmega328P Module For Arduino Compatible Nano Serial Board
Categories :
Motherboard / KitSKU :
181055Description:
For Arduino compatible Pro Mini Board
8MHZ/16MHz clock frequency
USB connection off board
Supports auto-reset
Max 150mA output
Over current protected
Reverse polarity protected
DC input 3.3V/5v up to 12V
On board Power and Status LEDs
Size:(Long)33mm *(wide1)18 mm *(high)6mm
8 analog inputs ports:A0 ~ A7
20 Digital input / output ports:TX, RX, D2 ~ D13, A0~A5
1 pairs of TTL level serial transceiver ports RX / TX
6 PWM ports: D3, D5, D6, D9, D10, D11
Main ChipAtmel Atmega328P-AU
Support Serial Download
Support 12V or less than 12V battery power supply
Color and more details are shown as pictures
PLS NOTE that due to lighting effects, monitor's brightness/ contrass settings ect,
there could be some slight differences in the color tone of the pictures and the actual item
