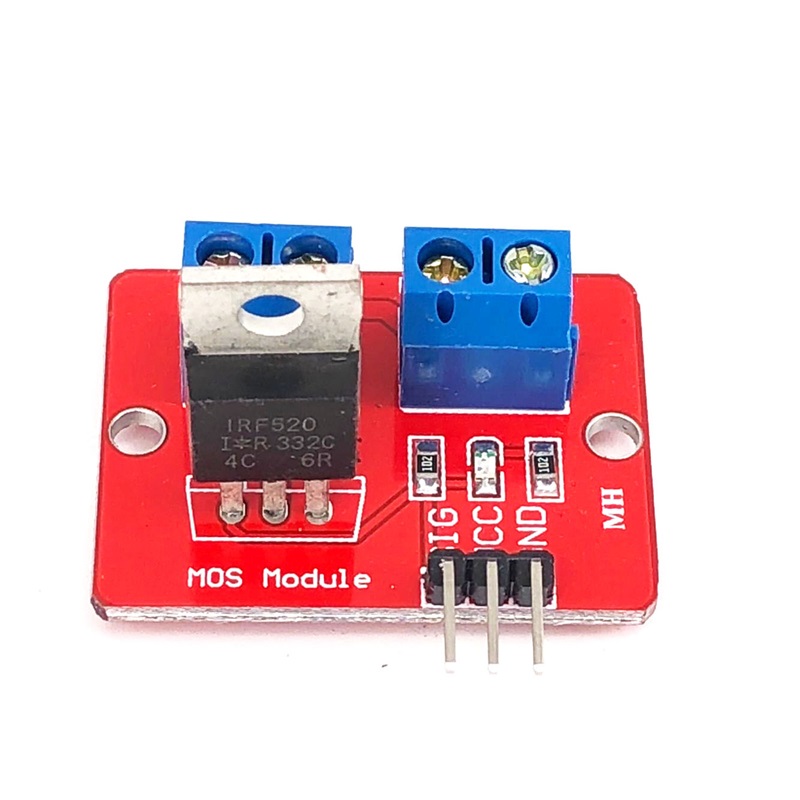

IRF520 MOS FET Driver Module for Arduino lot(5 pcs)
Categories :
Arduino Shield & ModuleSKU :
181080
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
DIY 37-in-1 Sensor Module Kit for Arduino
$ 15.58 $ 15.58
MCU-2516 CJMCU-2516 W25Q16 Memory Module
$ 1.38 $ 1.38
Digital 38KHz IR Receiver Compatible
$ 0.42 $ 0.42
NE555 Adjustable Frequency Pulse Generator Module
$ 1.10 $ 1.10
Description:
Size: 33*24mm
Weight: 10g
Voltage: 3.3V, 5V
Ports: Digital Level
Output load voltage :0-24V
Output load current: <5A (1A above need to add heat sink)
Platform: FOR Arduino, MCU, ARM, raspberry pie
Using original IRF520 Power MOS, you can adjust the output PWM
for Arduino drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves
PWM dimming LED can be used to achieve stepless dimming, variable speed motor
The product instructions:
PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V) :
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level (0 V to 0.5 V) :
V + and V - between 0, work lights out, don't work load
