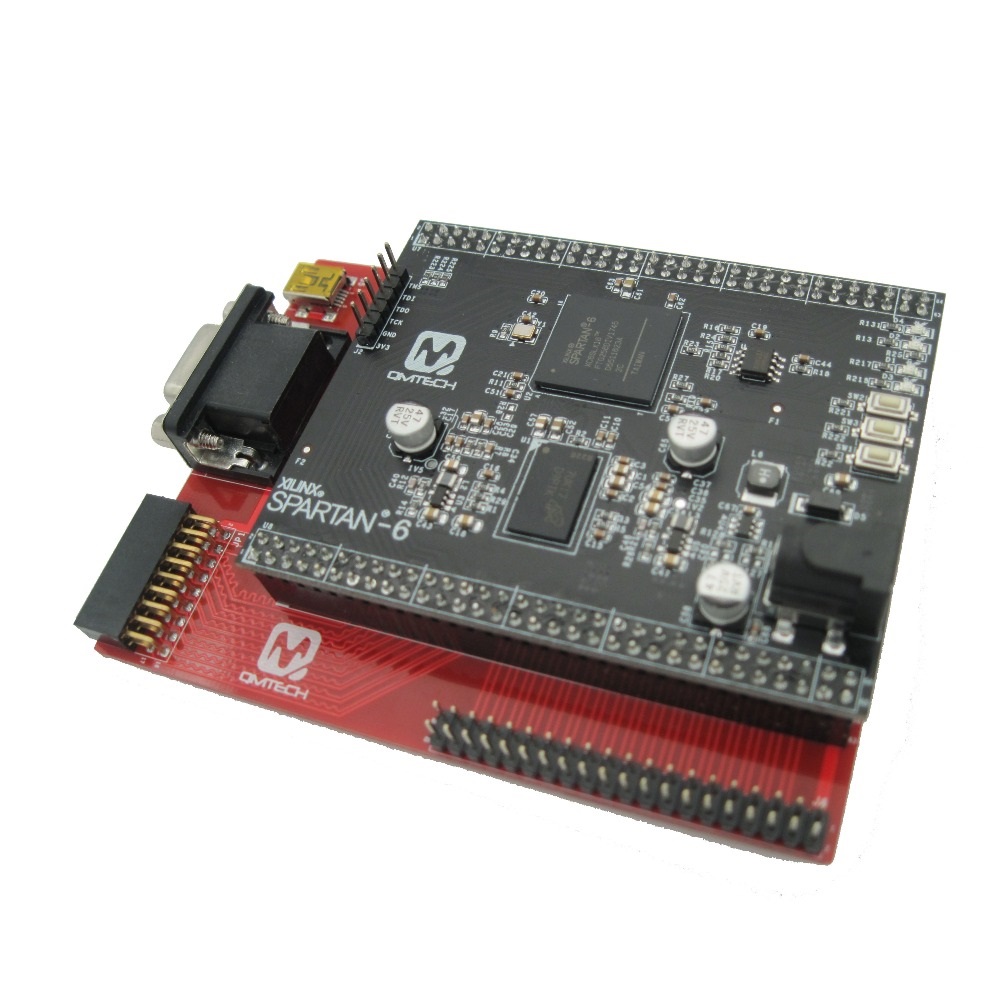

Xilinx FPGA Spartan6 Spartan-6 XC6SLX16 Development Board 256MB DDR3
Categories :
FPGA DevelopmentSKU :
181173
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
Xilinx FPGA Spartan6 Spartan-6 Core Board XC6SLX16 DDR3 256MB
$ 35.00 $ 35.00
Xilinx Platform Cable USB FPGA CPLD USB download cable
$ 32.51 $ 32.51
Xilinx Platform Cable USB FPGA CPLD USB download cable HS2 DLC10
$ 33.21 $ 33.21
Description:
On-Board FPGA: XC6SLX16-2FTG256C;
On-Board FPGA external crystal frequency: 50MHz;
XC6SLX16-2FTG256C has rich block RAM resource up to 576Kb;
XC6SLX16-2FTG256C has 14,579 logic cells;
On-Board M25P80 SPI Flash，1M bytes for user configuration code;
On-Board 256MB Micron DDR3, MT41J128M16-15E;
On-Board 3.3V power supply for FPGA by using MP2359 wide input range DC/DC;
XC6SLX16 development board has two 64p, 2.54mm pitch headers for extending user IOs. All IOs are precisely designed with length matching;
XC6SLX16 development board has 3 user switches;
XC6SLX16 development board has 4 user LEDs;
XC6SLX16 development board has JTAG interface, by using 6p, 2.54mm pitch header;
XC6SLX16 development board PCB size is: 6.7cm x 8.4cm;
Default power source for board is: 1A@5V DC, the DC header type: DC-050, 5.5mmx2.1mm;
XC6SLX16 development board provides USB 2.0 HS interface by using CY7C68013A-56LTXC;
XC6SLX16 development board provides 24Bit VGA interface by using ADV7123-KSTZ140;
XC6SLX16 development board provides USB to Serial port by using CP2102-GMR;
XC6SLX16 development board provides camera interface and 40Pin header for user IOs;
