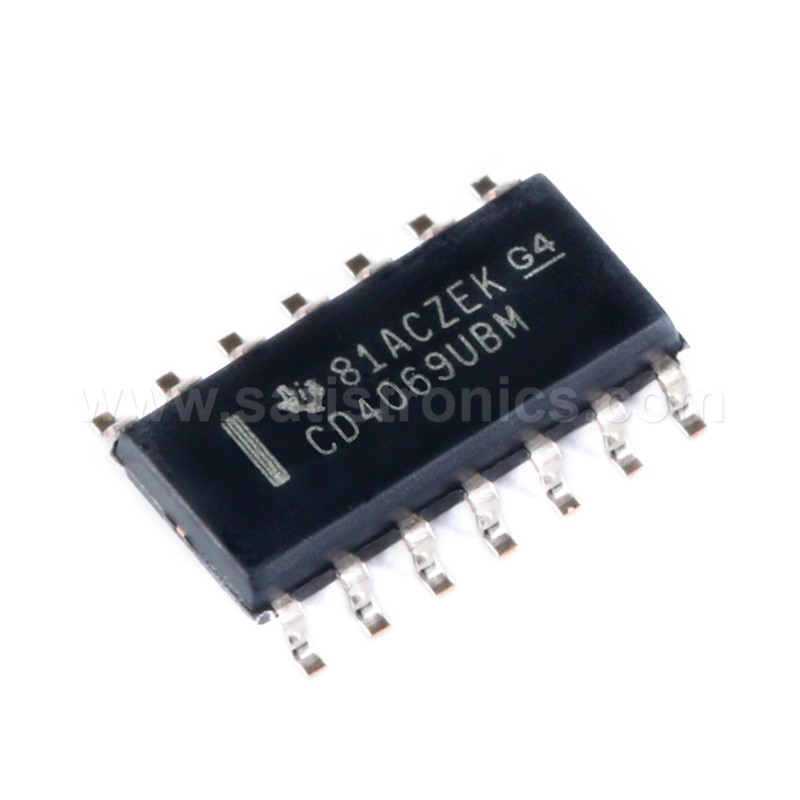

TI CD4069UBM96 SOIC-14 Logic Chip IC
Categories :
Logic ICsSKU :
181786
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
Renesas HD74LS21P Logic Gate and Inverter Inline DIP-14
$ 0.93 $ 0.93
TI SN74HC165DR SOIC-16 Logic Chip
$ 0.22 $ 0.22
TI CD4027BE CMOS Dual J-K Master/Slave Flip-Flop DIP-16
$ 0.27 $ 0.27
Nexperia 74HC03D Quad 2 Input NAND Gate 14-SOIC
$ 0.11 $ 0.11
NE556 556 DIP-14 Dual Bipolar Timer IC
$ 0.11 $ 0.11
PDF Datesheet:
http://www.ti.com.cn/product/cn/CD4069UB?keyMatch=CD4069UBM96&tisearch=Search-CN-Products
Description:
The CD4069UB device consist of six CMOS inverter circuits. These devices are intended for all general-purpose inverter applications where the medium-power TTL-drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.
Features:
· Standardized Symmetrical Output Characteristics
· Medium Speed Operation: –tPHL, tPLH = 30 ns at 10 V (Typical)
· 100% Tested for Quiescent Current at 20 V
· Maximum Input Current of 1 μA at 18 V Over Full Package-Temperature Range, 100 nA at 18 V and 25°C
· Meets All Requirements of JEDEC Tentative Standard No. 13B, Standard Specifications for Description of B Series CMOS Devices
Parameters:
| Technology Family | CD4000 |
| VCC (Min) (V) | 3 |
| VCC (Max) (V) | 18 |
| Bits (#) | 6 |
| Voltage (Nom) (V) | 5 |
| F @ Nom Voltage (Max) (Mhz) | 12 |
| ICC @ Nom Voltage (Max) (mA) | 0.0075 |
| tpd @ Nom Voltage (Max) (ns) | 110 |
| Output Drive (IOL/IOH) (Max) (mA) | -1/1 |
| Schmitt Trigger | No |
| Rating | Catalog |
| Operating Temperature Range (C) | -55 to 125 |
| Pin/Package |
14PDIP 14SO 14SOIC 14TSSOP |
