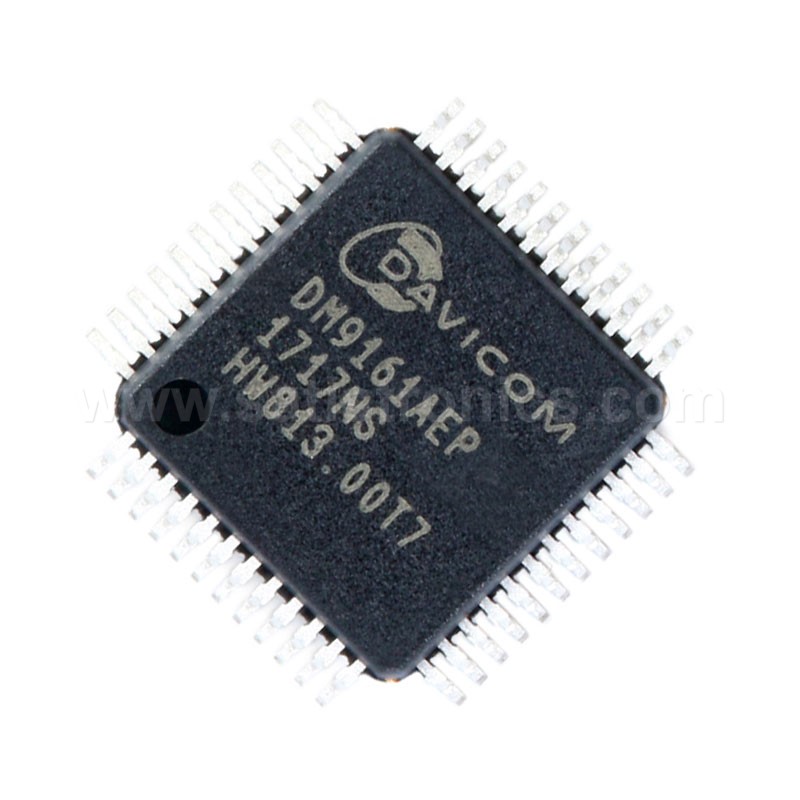

Davicom DM9161AEP LQFP-48 10/100 Mbps Fast Ethernet Physical Layer Single Chip
Categories :
Interface ICsSKU :
182453Parameters:
· Fully comply with IEEE 802.3 / IEEE 802.3u 10Base-T/ 100Base-TX, ANSI X3T12 TP-PMD 1995 standard
· Support MDI/MDI-X auto crossover function (Auto-MDI)
· Support Auto-Negotiation function, compliant with IEEE 802.3u
· Selectable repeater or node mode
· Selectable MII or RMII (Reduced MII) mode for 100Base-TX and 10Base-TX
· Selectable MII or GPSI (7-Wired) mode for 10Base-T
· Selectable full-duplex or half-duplex operation
· MII management interface with maskable interrupt output capability
· Provide Loopback mode for easy system diagnostics
· LED status outputs indicate Link/ Activity, Speed10/100 and Full-duplex/Collision
· Support Dual-LED optional control
· Single low power Supply of 3.3V with an advanced CMOS technology
· Very Low Power consumption modes:
· - Power Reduced mode (cable detection)
· - Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction
· - 1: 1 transformers only when HP Auto-MDIX Enable
· Compatible with 3.3V and 5.0V tolerant I/Os, 48-pin LQFP
