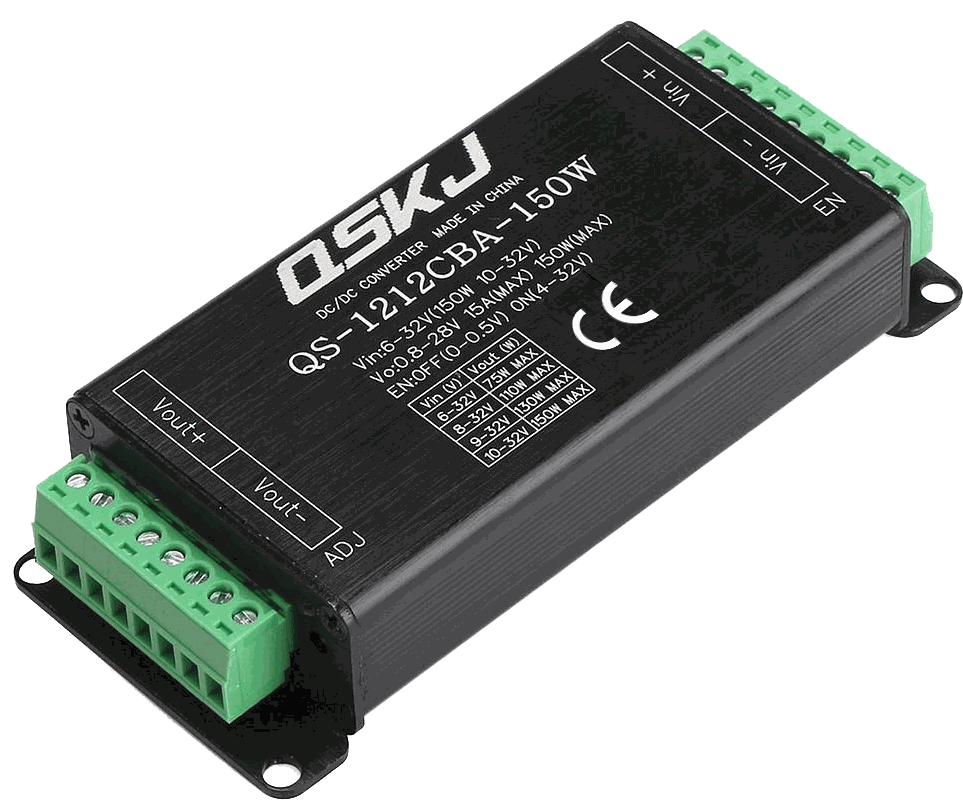

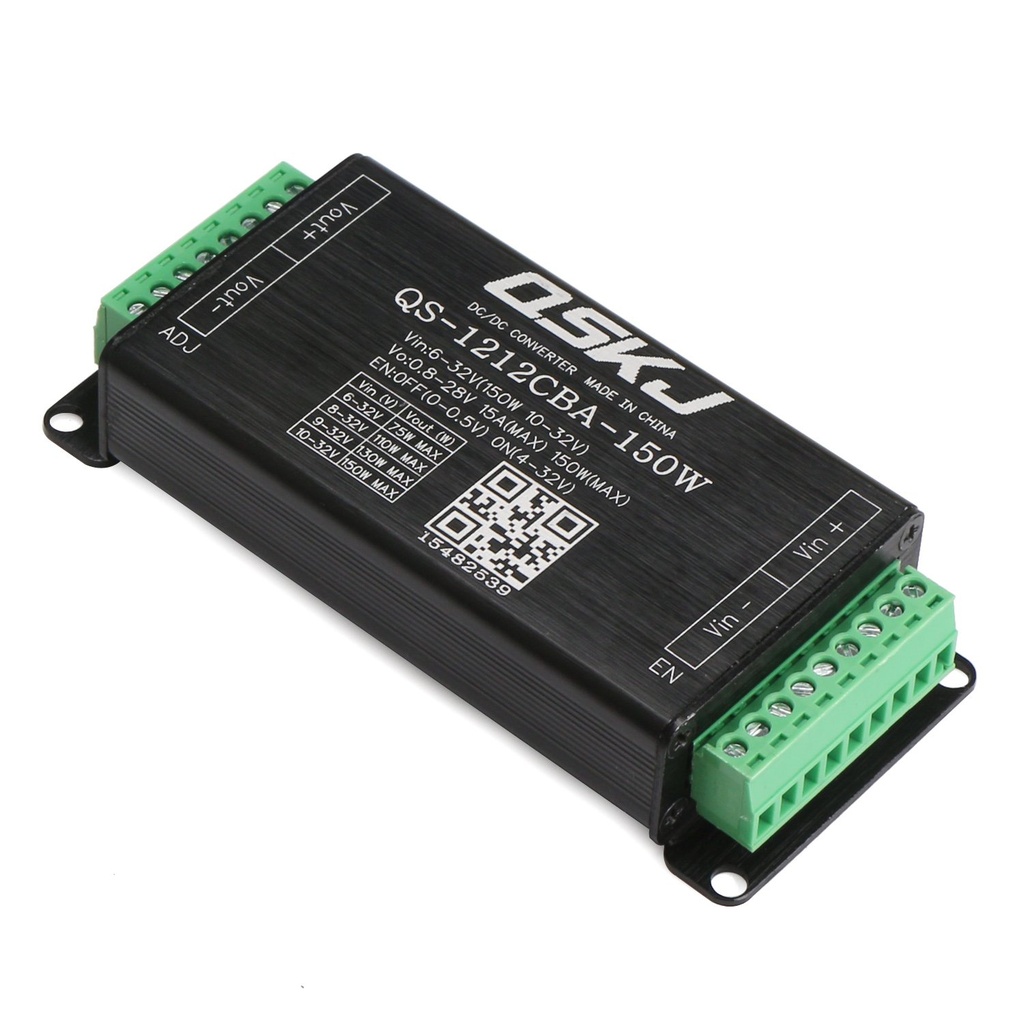

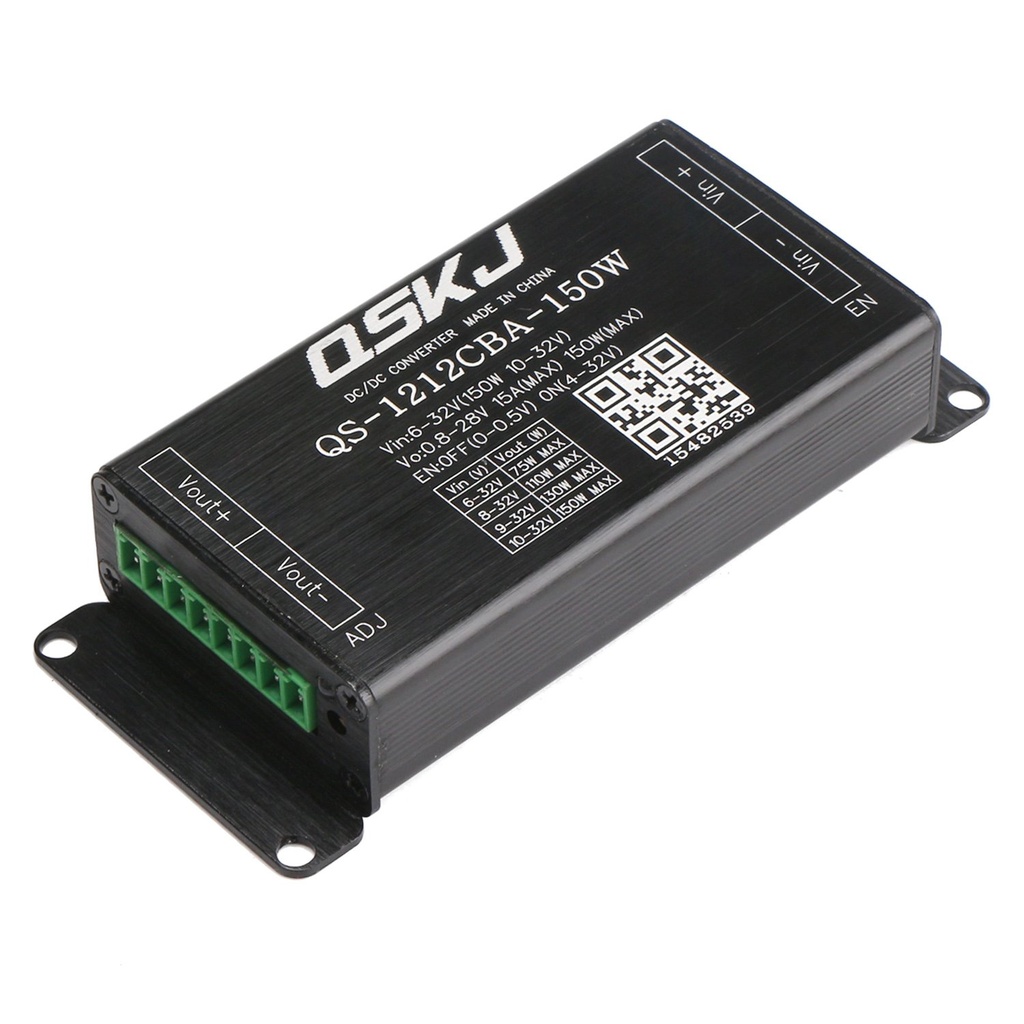

Brand: QSKJ
Model: QS-1212CBA-150W
This Module is CE Certificate. Certificate will be provided after orders.
Size:6-32V to 0.8-28V 150W (Case)
Size: 83 (L) x 45 (W) x 19 (H) mm (excluding input and output terminals)
Size: 101 (L) x 45 (W) x 19 (H) mm (including the input and output terminals)
Feature:
Module Properties: non-isolated buck-boost module (high efficiency)
Rectification: synchronous rectification
Input voltage :DC 6-32V (Rated Power, input voltage equal to 9V; if input 6v, output about 90W)
Lowest dropout: 0V (seamless automatic switching buck-boost, no minimum pressure requirements)
Output voltage :DC 0.8-28V (adjustable)
Output Current: 15A (MAX)
Output Power: 150W (MAX) (eg: output 12V 13A)
Conversion efficiency: Up to 97% (the higher the output voltage, the higher the efficiency, the smaller the pressure the higher the efficiency)
Soft-start time: 500mS
Remote control port: Yes, ON/OFF, (Connect 0V, closed), (Connect 5V or Vacant, work).
Output ripple: 1% (MAX), 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation)
Full load temperature rise: 40°c
Load regulation:± 1%
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: Yes, output current limiting (current limit of about 17A)
Input Reverse Polarity Protection: Yes
Input over-voltage protection: Yes, over-voltage protection is 33V, the maximum input voltage can not exceed 36V.
Indicator: Yes, working properly (Green), not working or protection (Red)

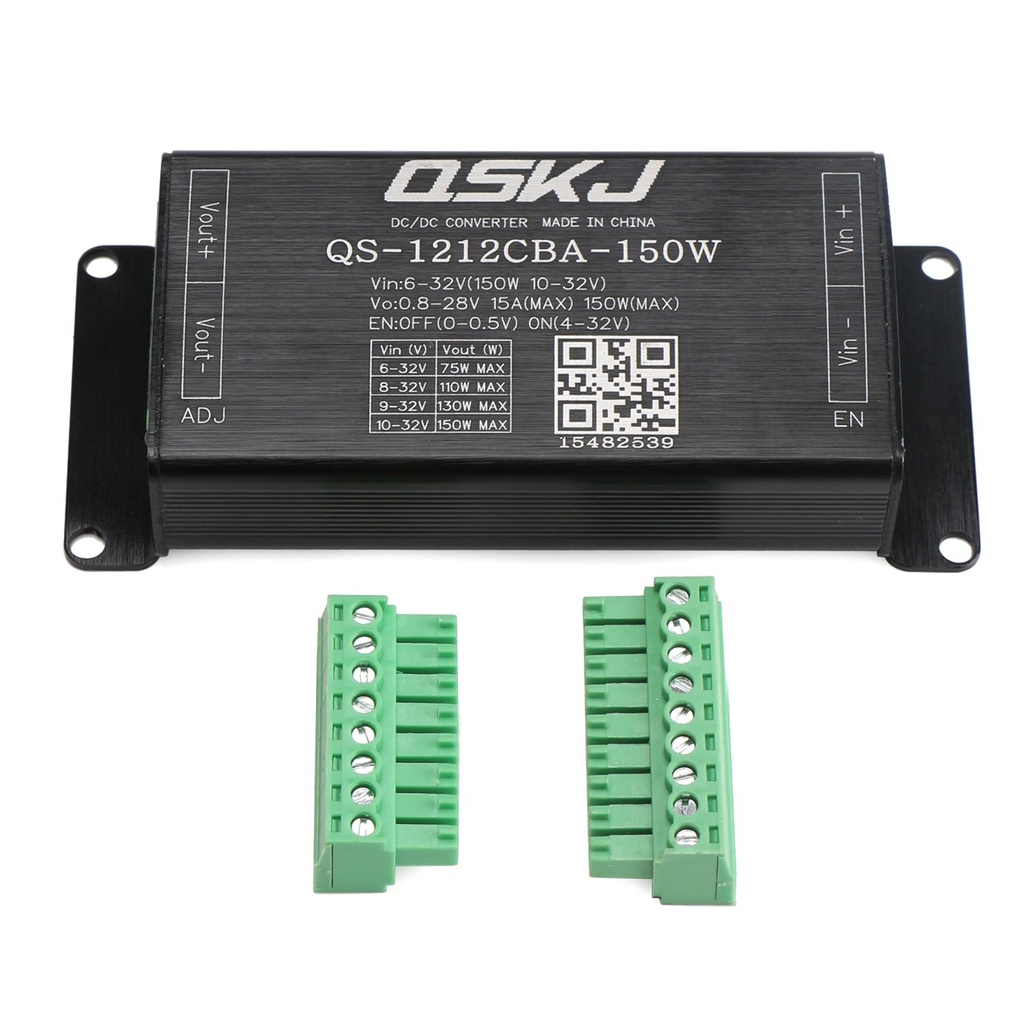

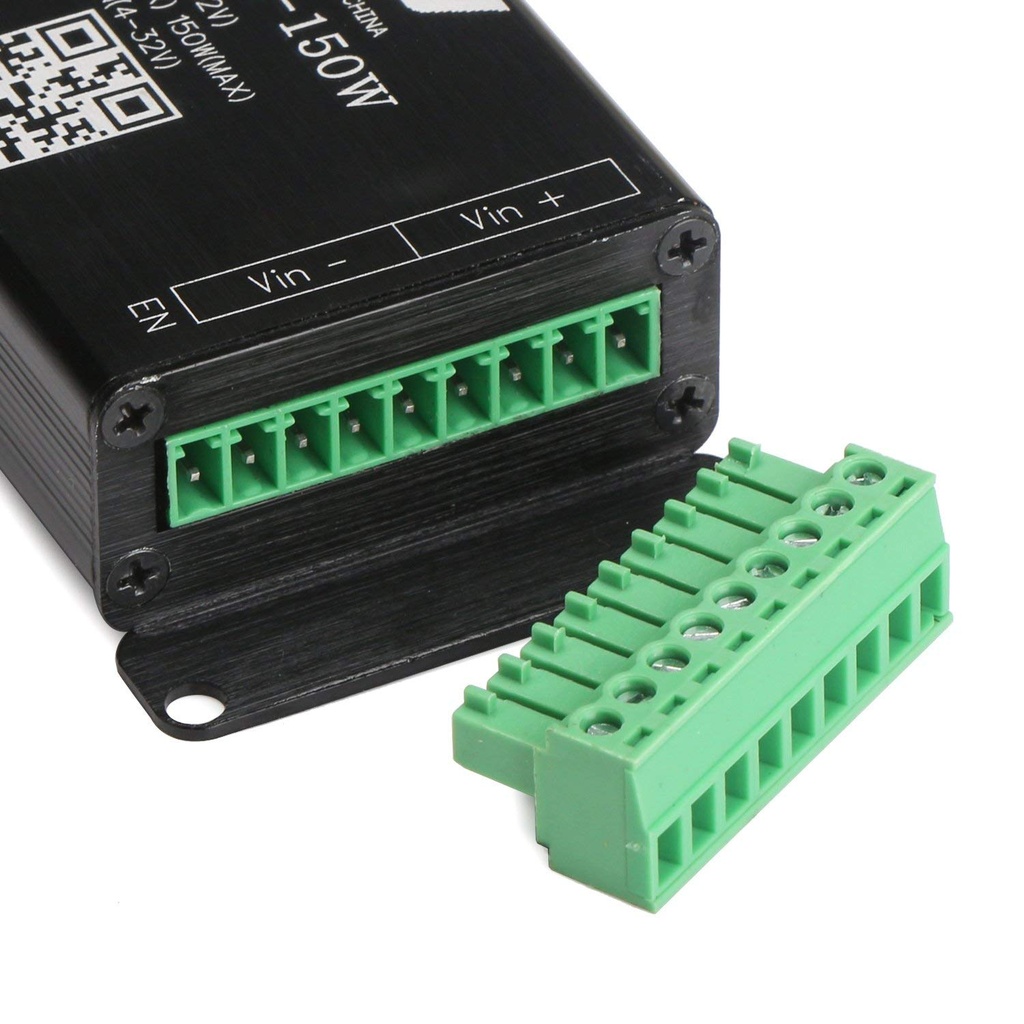

Connection: Removable terminal, The eight input and output terminals,Maximum current per port 6A, Please use multiple ports in parallel when large current.
