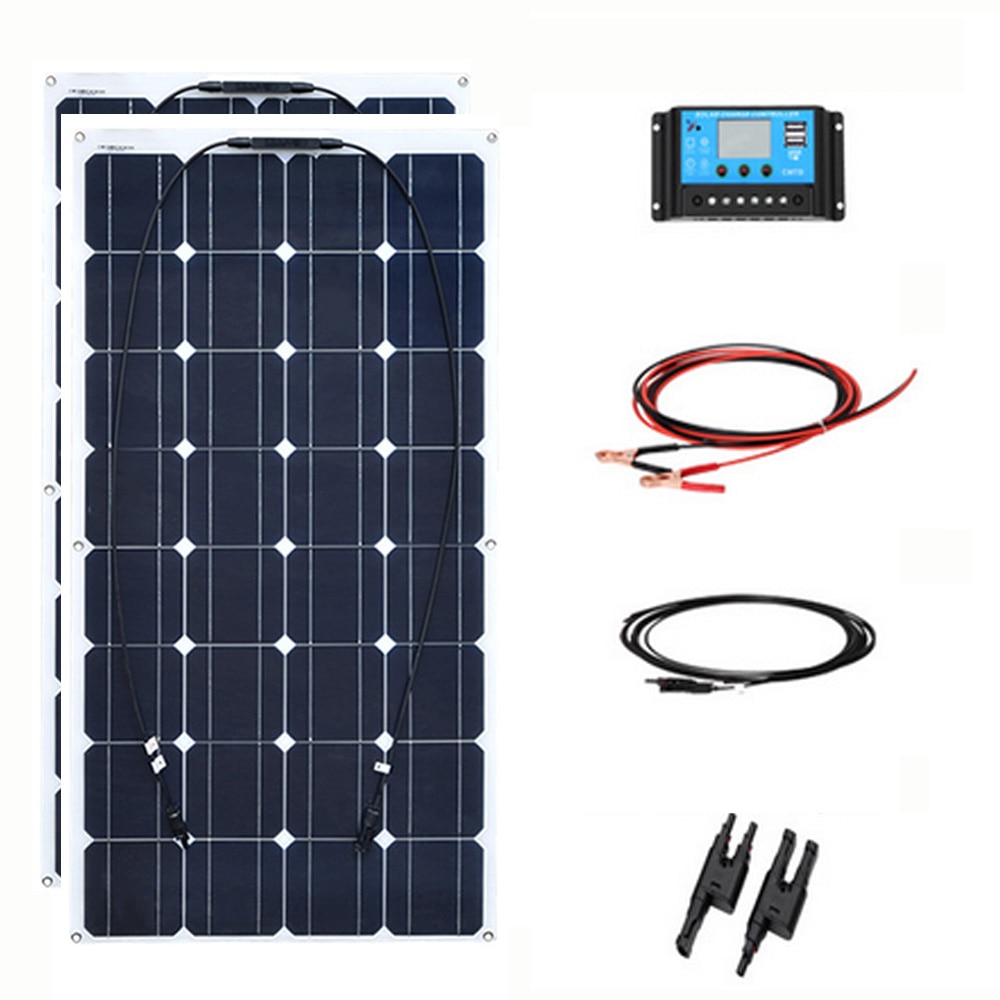

200W Flexible Solar Panel System for RV Car Marine Boat Home Use 12V /24V DIY Kit

Packing listing：

• 2 pcs 100w solar panel

• 1 pcs 12v/24v/20A controller

• 1 set 3m cable with MC4 connector(2.5mm2)

• 1 set 3m cable with alligator clip(2.5mm2)

• ​1 set  2 in 1 adapter

This product we set up inventory in Russia, Canada, Australia,Spain，Belgium. When you buy it， we will ship from your country that you don't need to consider customs clearance and duties and it will be fast delivery.

However，the zip code in Spain that starts with 35, 38, 51, 52 need to provide buyer identity information, sales vouchers, and add 15 euros for customs clearance and duties.

The zip code in Russia that starts with 6，the delivery time is long ，maybe 30-45 days and some zip codes will only be sent to the post office instead of the shipping address，you need to go to the post office to pick up the parcel.

Some areas of Canada are remote areas and need to add remote fees. When you need to add remote fees, we will send you an email. Please check the mail, thank you！

Description：

• high quality Monocrystalline silicon cell ，high efficiency 19.5% .

• Light weight  and portable.

• Durable, portable and environmental friendly.

• High efficiency and excellent performance.Diode for anti-reverse charging to battery.

• Semi flexible: can be bending angle up to 20 degrees

• Wide use applications:Golf car,Yacht, boat,caravan, electric car,travel tourism car, patrol car, roof,camping,roof power

Parameters:

• Maximum power(Pmax): 100W

• Maximum system voltage: 700V DC

• Open circuit voltage(Voc): 19.2V

• Short circuit current(Isc): 6.87A

• Maximum power voltage(Vmp): 16V

• Maximum power current(Imp): 6.25A

• Cell efficiency: 19.5%

• Operating temperature(NOCT): 45±2℃

• Temperature range: -20℃～+80℃

• Number of cells: 32pcs

• Size: 1050*540*3 mm

• Standard Test Conditions: lrradiance 1000w/m2, temperature 25℃,AM=1.5
