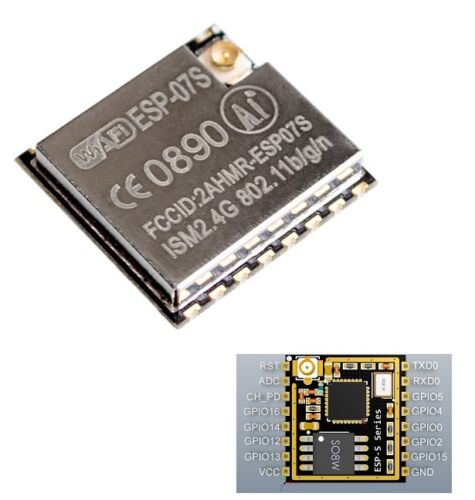

ESP8266 ESP-07S Serial to WIFI Transceiver Wireless Module LWIP AP+STA

https://www.qskj.cc/web/image/product.template/6267/image_1920?unique=04118b4
(0 review)

$ 2.05 2.05 USD $ 2.05

¥ 15.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Wireless Modules
    SKU :
    1940944
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    Standard I/O Expansion Shield V5 Xbee Sensor Shield RS485 V5 Funduino Board Module
    Standard I/O Expansion Shield V5 Xbee Sensor Shield RS485 V5 Funduino Board Module
    $ 3.01 $ 3.01
    ESP-12F ESP8266 Remote Serial WIFI Transceiver Wireless Module
    ESP-12F ESP8266 Remote Serial WIFI Transceiver Wireless Module
    $ 2.33 $ 2.33
    nRF51822 BLE 4.2 Low power E73-2G4M04S1D 2.4GHZ 4dBm RF Bluetooth Module
    nRF51822 BLE 4.2 Low power E73-2G4M04S1D 2.4GHZ 4dBm RF Bluetooth Module
    $ 3.56 $ 3.56
    JDY-19 Ultra-low Power Consumption Bluetooth 4.2 BLE Module
    JDY-19 Ultra-low Power Consumption Bluetooth 4.2 BLE Module
    $ 1.90 $ 1.90
    CC2530 Zigbee Module DL-20 Wireless Serial Port Module
    CC2530 Zigbee Module DL-20 Wireless Serial Port Module
    $ 10.85 $ 10.85
    315/433MHz Wireless RF Remote Receiver Module LR35A LR45A
    315/433MHz Wireless RF Remote Receiver Module LR35A LR45A
    $ 1.05 $ 1.05

    Features:

    • Support 802.11 b/g/n standard

    • Built-in Tensilica L106 low power consumption 32 bit MCU,primary frequency supports 80 MHz and 160 MHz,support RTOS

    • Built-in 10 bit high-precision ADC

    • Built-in TCP/IP protocol stack

    • Built-in TR switch,balun,LNA,power amplifier and matching network

    • Built-in PLL,AVR and power management component,802.11b mode +20dBm output power

    • A-MPDU,A-MSDU polymerization and 0.4s guard interval

    • WiFi 2.4 GHz,support WPA/WPA2 security mode

    • Support AT remote upgrade and cloud OTA upgrade

    • Support STA/AP/STA+AP operating mode

    • Support Smart Config function (include Android and iOS device)

    • HSPI,UART,I2C,I2S,IR Remote Control,PWM,GPIO

    • Deep sleep holding current is 10uA,power off current is less than 5uA

    • Within 2ms awakening,connect and transfer data package

    • Standby state power consumption is less than 1.0 mW (DTIM3)

    • Operating Temperature Range:-40℃~125℃

    Pin Definition:

    • RST:reset module

    • ADC:A/D conversion result,input voltage range is 0-1V;value range:0?1024

    • CH_PD:high level operate;low level module power off

    • GPIO16:connect with RST pin can achieve deep sleep awakenning

    • GPIO14:HSPI_CLK

    • GPIO12:HSPI_MISO

    • GPIO13:HSPI_MOSI; UART0_CTS

    • VCC:3.3V power supply

    • GND:GND

    • GPIO15:MTDO;HSPICS;UART0_RTS

    • GPIO2:UART1_TXD

    • GPIO0:GPIO0

    • GPIO4:GPIO4

    • GPIO5:GPIO5

    • RXD0:UART0_RXD;GPIO3

    • TXD0:UART0_TXD;GPIO1
