Electronic Temperature Control Sound Light Alarm Suite DC 3~5V DIY Kit
Categories :
Component KitsSKU :
1941026
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like

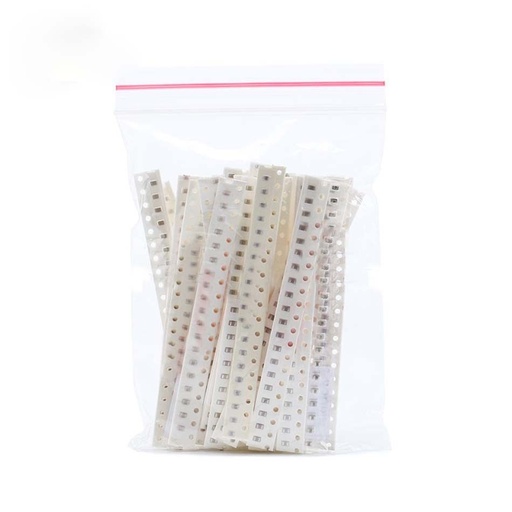

1W Carbon Film Resistors Kit 1KΩ--2MΩ 30 Values*10
$ 4.07 $ 4.07
2W 5% Carbon Film Resistors Kit 0.1Ω to 750Ω 30 Values*5
$ 2.98 $ 2.98
Description:
With Simple circuit, easy soldering, this suite is very suitable for the teenagers to learn circuit and soldering. The feature of this suite is small size, high sensitivity. It uses the sound and light to finish the alarm, and it can be used to detect the temperature. In conclusion, it has high practicability
1.Circuit introduction

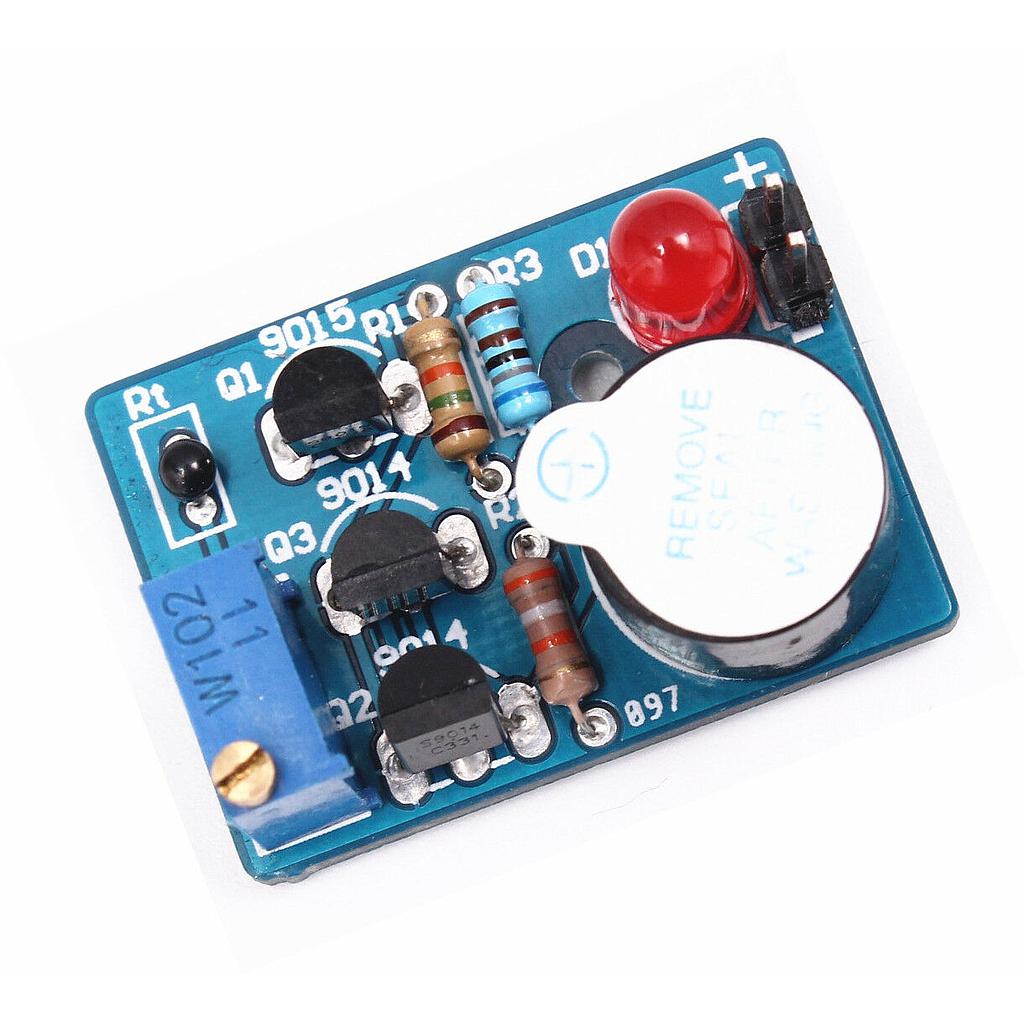

The circuit of this suite is very simple, it is consisted of three triodes(two S09014 and one S9015), one active buzzer, one LED and one thermistor. Adjust the potentiometer to set the temperature threshold value, use two S9014 triode to drive the buzzer, when the temperature is high than the threshold value, the LED lights and the buzzer alarms; when the temperature is lower than the threshold value, the LED does not light, the buzzer does not alarm.
2.Parameter
Working voltage: DC 3~5V.
PCB size: ：21*30mm
3.Components list:
DIY Kit Electronic Temperature Control Sound Light Alarm Suite | ||||||
NO. | Component | Label | Capsulation | Value | Quantity | Remark |
1 | Triode（9015） | Q1 | TO-92 |
| 1 |
|
2 | Triode（9014） | Q2，Q3 | TO-92 |
| 2 |
|
3 | Potentiometer（W3605） | RP | W3605 | 1K | 1 |
|
4 | Active Buzzer | LS |
|
| 1 |
|
5 | Thermistor（1K） | Rt |
| 1K | 1 |
|
6 | 5mm LED（Red） | D1 |
|
| 1 |
|
7 | Resistor | R1 | AXIL-0.3 | 15K | 2 |
|
8 | Resistor | R2 | AXIL-0.4 | 39K | 2 |
|
9 | Resistor | R3 | AXIL-0.5 | 6.8K | 2 |
|
10 | 2P Pin Header |
|
|
| 1 |
|
