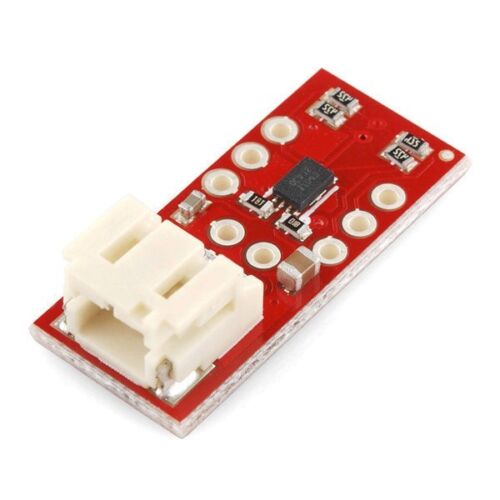

LiPo Fuel Gauge Battery Detection A/D Conversion IIC MAX17043
Categories :
Other ModulesSKU :
1941069
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
XD-53A NE555 Frequency Adjustable Pulse Generator Module
$ 1.93 $ 1.93
801S Vibration Sensor Module Analog Output for Arduino
$ 2.75 $ 2.75
TTP224 4-Channel Touch Switch Module Button Arduino
$ 0.69 $ 0.69
Description:
LiPo batteries are a great way to power your projects. They're small, lightweight, and pack a pretty good punch for their size. Unfortunately, even the best batteries eventually run low on power and when they do it's often unexpected (and at the worst time). Don't be caught by surprise next time your board suddenly powers-down! The LiPo Fuel Gauge connects your battery to your project and uses a sophisticated algorithm to detect relative state of charge and direct A/D measurement of battery voltage. In other words, it tells your microcontroller how much ‘fuel' is left in the tank. The LiPo Fuel Gauge communicates with your project over I2C and an alert pin also tells you when the charge has dropped below a certain percentage.
Features:
Fuel gauge system for single cell lithium ion batteries
Can be connected in circuit to monitor battery.
Hardware and Software Reset.
I2C Interface
