CC2530 Core Board CC2530F256 2.4G Wireless Transceiver Module Network Zigbee M

Price:

$ 2.08
USD
  2. Shop
  3. Wireless Modules
  4. CC2530 Core Board CC2530F256 2.4G Wireless Transceiver Module Network Zigbee M
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.07
$ 1.07
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.15
$ 5.15

CC2530 Core Board CC2530F256 2.4G Wireless Transceiver Module Network Zigbee M

https://www.qskj.cc/web/image/product.template/6481/image_1920?unique=d8c7308
(0 review)

$ 4.57 4.57 USD $ 4.57

¥ 33.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Wireless Modules
    SKU :
    1941184
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    ESP8285 ESP-01M Wifi Module IOT Wireless Transceiver Receiver Replace ESP8266 US
    ESP8285 ESP-01M Wifi Module IOT Wireless Transceiver Receiver Replace ESP8266 US
    $ 2.49 $ 2.49
    5V~3.3V 4 Channel IIC I2C Logic Level Converter Bi-Directional Module lot(5 pcs)
    5V~3.3V 4 Channel IIC I2C Logic Level Converter Bi-Directional Module lot(5 pcs)
    $ 1.38 $ 1.38
    Standard I/O Expansion Shield V5 Xbee Sensor Shield RS485 V5 Funduino Board Module
    Standard I/O Expansion Shield V5 Xbee Sensor Shield RS485 V5 Funduino Board Module
    $ 3.04 $ 3.04
    BK8000L Wireless Bluetooth Stereo Audio Module Serial SPP Speaker Amplifier DIY
    BK8000L Wireless Bluetooth Stereo Audio Module Serial SPP Speaker Amplifier DIY
    $ 1.80 $ 1.80
    RXC6 433Mhz / 315MHZ Superheterodyne Wireless Receiver PT2262 Code Steady
    RXC6 433Mhz / 315MHZ Superheterodyne Wireless Receiver PT2262 Code Steady
    $ 1.66 $ 1.66
    ESP8266 ESP-07S Serial to WIFI Transceiver Wireless Module LWIP AP+STA
    ESP8266 ESP-07S Serial to WIFI Transceiver Wireless Module LWIP AP+STA
    $ 2.08 $ 2.08

    Description:

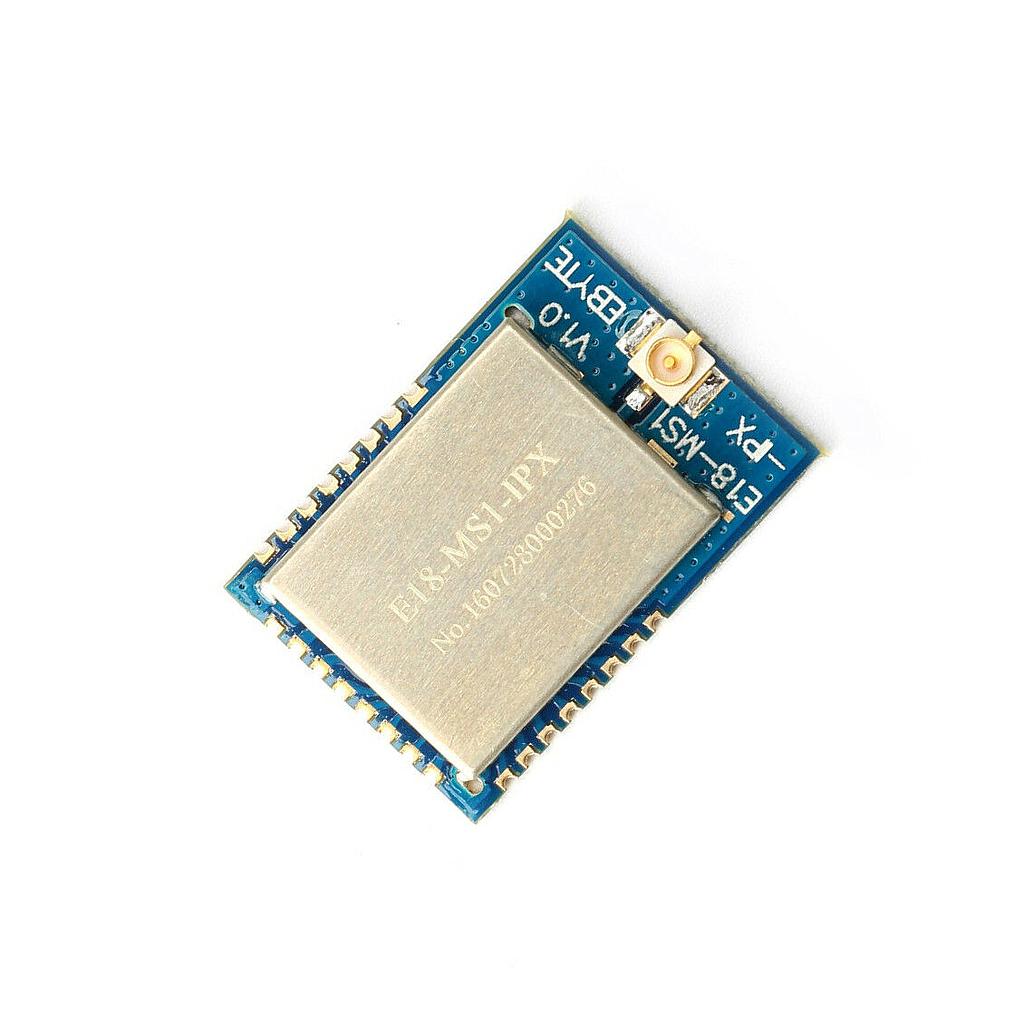

    • Model: E18-MS1

    • Operating frequency: 2405-2408MHz

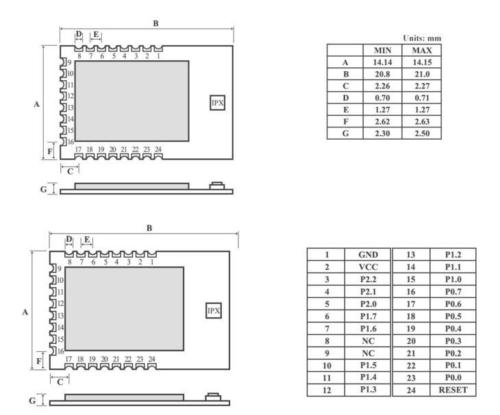

    • Interface pins: 3*8*1.27mm

    • Operating voltage: 2.0V-3.6V DC

    • Communication level: 0.7VDD-5VDC

    • Transmit power: 4dBm (about 2.5mW)

    • Found Distance: 200 m (max)

    • Air velocity: 250Kbps

    • Emission current: 28mA (4dBm)

    • Receiving Current: 27mA

    • Transceiver Length: 1 ~ 103byte

    • Receiving sensitivity: -97dBm@250Kbps

    • Working temperature: -40 ~ 85 Degree

    • Humidity: 10% to 90%

    • Storage temperature: -40 ~ 125 Degree

    • Radio frequency chip：CC2530

    Package including:

    • 1pcs CC2530 Core Board CC2530F256 2.4G Wireless Transceiver Module Network Zigbee M
