BK8000L Wireless Bluetooth Stereo Audio Module Serial SPP Speaker Amplifier DIY

Price:

$ 5.05
USD
  2. Shop
  3. BK8000L Wireless Bluetooth Stereo Audio Module Serial SPP Speaker Amplifier DIY
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.07
$ 1.07
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.15
$ 5.15

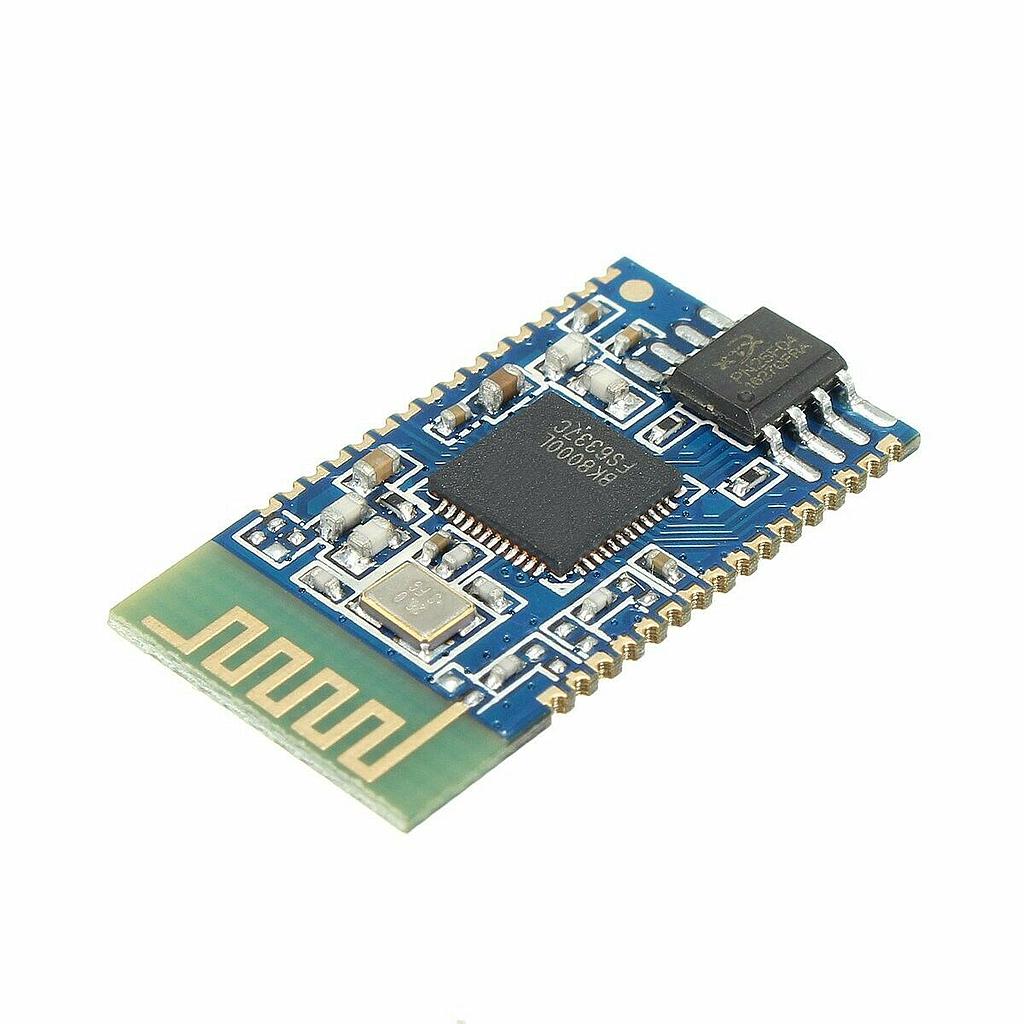

BK8000L Wireless Bluetooth Stereo Audio Module Serial SPP Speaker Amplifier DIY

https://www.qskj.cc/web/image/product.template/6482/image_1920?unique=d8c7308
(0 review)

$ 1.80 1.8 USD $ 1.80

¥ 13.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Wireless Modules
    SKU :
    1941185
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    ESP32-CAM ESP32 5V WIFI Bluetooth Development Board with OV2640 Camera Module
    ESP32-CAM ESP32 5V WIFI Bluetooth Development Board with OV2640 Camera Module
    $ 7.19 $ 7.19
    Bluetooth 4.0 Stereo Audio Module Control Chip CSR8635 Stereo Bluetooth
    Bluetooth 4.0 Stereo Audio Module Control Chip CSR8635 Stereo Bluetooth
    $ 3.60 $ 3.60
    2.4G Zigbee Mesh DL-LN32P Wireless Module
    2.4G Zigbee Mesh DL-LN32P Wireless Module
    $ 12.18 $ 12.18
    5V~3.3V 4 Channel IIC I2C Logic Level Converter Bi-Directional Module lot(5 pcs)
    5V~3.3V 4 Channel IIC I2C Logic Level Converter Bi-Directional Module lot(5 pcs)
    $ 1.38 $ 1.38
    HC-05 6 Pin Wireless Bluetooth RF Transceiver Module Serial BT Module for Arduino
    HC-05 6 Pin Wireless Bluetooth RF Transceiver Module Serial BT Module for Arduino
    $ 6.03 $ 6.03
    HC-08 Bluetooth Serial Port Module Bluetooth 4.0 Low Power Consumption Microampere Level Current
    HC-08 Bluetooth Serial Port Module Bluetooth 4.0 Low Power Consumption Microampere Level Current
    $ 5.05 $ 5.05

    Description:

    • Model BK8000L

    • Bluetooth specification Bluetooth V2.1

    • Supply voltage DC2.8-4.2V, ≤2.9V automatic shutdown, ≤3.1V alarm

    • Bluetooth protocol HFPV1.5, A2DPV1.2, AVRCPV1.4, HSP1.2, GAVDP1.2, IOP

    • Working current ≤60mA

    • Standby current <500uA

    • Temperature range -40oC ~ + 85oC

    • Wireless transmission range ≤10 meters

    • Transmission power Class2 4dbm

    • Sensitivity -80dBm <0.1% BER

    • Frequency Range 2.4GHz ~ 2.480GHz

    • External Interface Serial (TTL), connected to the PC need MAX232

    • SBC decoding audio performance

    • Module size 25x13.5x1.8mm

    • Adapter plate size 31x25mm

    Package Included :

    •  1 x BK8000L Wireless Bluetooth stereo audio module serial SPP speaker amplifier DIY
