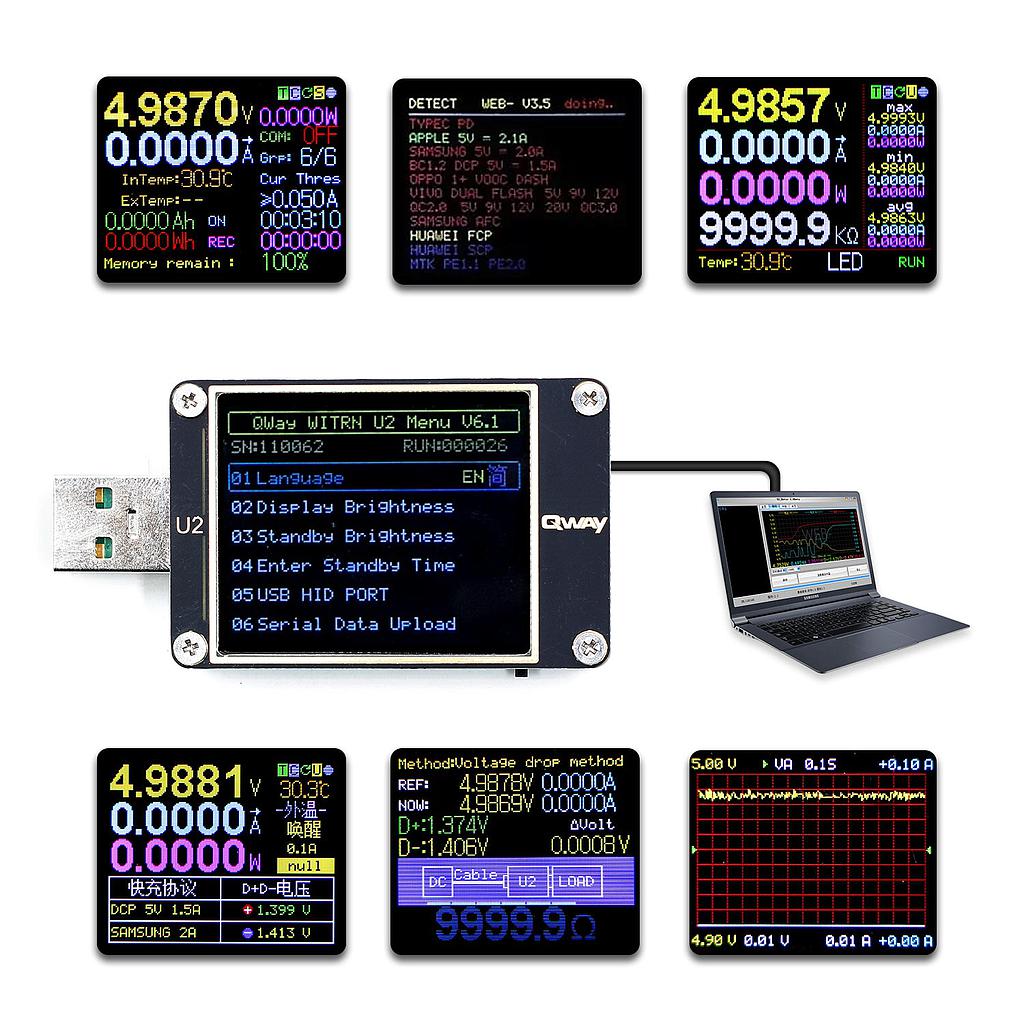

WEB-U2 USB Tester QC4+ PD3.0 2.0 PPS Fast Charging Protocol Capacity Test

Features:

• Low-voltage nickel-metal hydride battery measurement

• Support HAWEI FCP SCP Broadcast dynamic adjustment

• Apple device charging acceleration

• Gravity sensing,automatically rotates the screen

• Test the internal resistance of the wire

• Charging protocol speculation demonstration

• Two-way Current Detection

• Apple PD Charger SN Serial Number Detection

• PD E-Marker Wire detection

• PD3.0 PPS QC4+ detection trigger

• PD sniffing, monitoring, communication packet tracer mode

• Support English display ,can download the user manual from the QR code of the product

• CNC Version is made of aluminum alloy and is more scratch resistant

• 6-bit high-precision display, 5/6-bit one-button switching, support for external H ID power supply

• USB H ID externally independent power supply, can be started at 0V, and can measure low voltage

Parameters:

• Type: WEB-U2 Current Voltage Meter

• Voltage: DC 4~24V

• Master chip: STM32F072 ARM Kernel

• Current: 0-5A

• Display:1.77inch TFT screen ; 128 * 160 Resolution

• Voltage Resolution: 0.0001V

• Size: 52.5 * 34.5 * 13mm(Prox.)

• Current accuracy: Range 0.1%±nd

• USB interface: USB2.0 5P male ; USB2.0A female

• Ampere hourcapacity: 99999Ah(6 groups)

• MicroUSB: PC Input ,PC USB H ID

• Ampere hourresolution: 0.0001Ah

• TYPE-C: 2PC IN and OUT

• Ampere-hour capacity: 99999Wh(6 groups)

• Button: OK and M key

• Watt time resolution: 0.0001Wh

• Power on time: 100 hours

• Temperature Measurement: -40 C~180 C

• Charging time: 100 hours

• D+D-Voltage: Support measurement

• Built-in load: built-in current to

• small load MTK

• Fast charge protocol: Support detection trigger

• Bluetooth module: Bluetooth 4.0 wireless module (Optional)

• FD trigger: PD2.0 PD3.0 PPS QC4+E-Marker

• Firmware upgrade: USB HI D free drive

• Memory: FRAM ferroelectric (10 billion brush write life)

• PC host computer: USB HI D free drive

• Static power consumption: Turn off the screen, close the data port < 10mA

• Force sensor: Built-in 3-axis gravity sensor

• Internal resistance: connected to the USB interface 35m ohm(Prox.)

• Serial number: Built-in independent SN body identification serial number

• Temperature Sensor: one temperature sensor inside the tester, it can be connect to a external temperature sensor(optional)

Package Includes:

1 x Standard Version WEB-U2 USB Tester (optional)

1 x CNC Version WEB-U2 USB Tester (optional)
