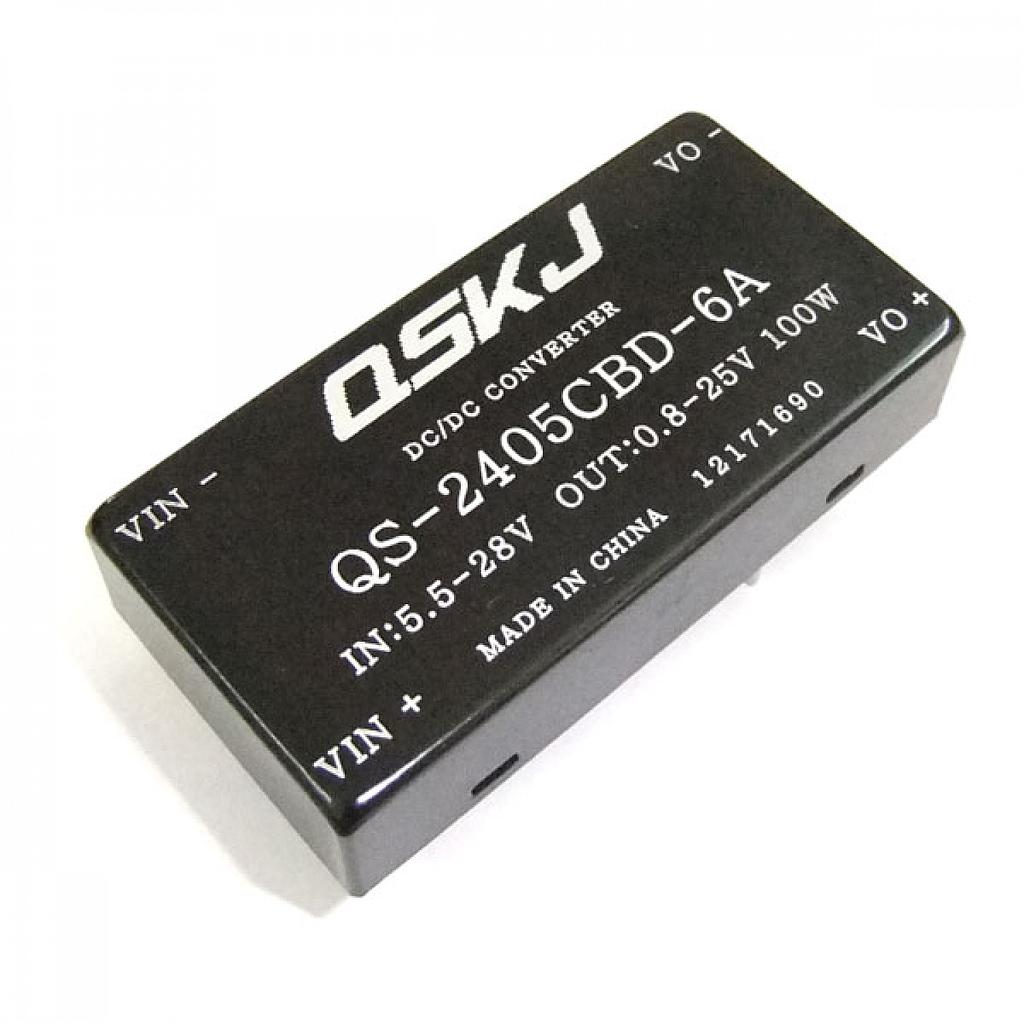

DC-DC Converter 5.5-28V to 0.6-25V 6A 100W Step Down Module QS-2405CBD-6A

https://www.qskj.cc/web/image/product.template/6734/image_1920?unique=711d32c
(0 review)

$ 13.56 13.56 USD $ 13.56

¥ 98.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Car Power Module series , Step Up Boost Module
    SKU :
    1941756
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    DC-DC Boost Module 3-34V to 4-35V Adjustable Power Supply Module QS-0324CBD-15W
    DC-DC Boost Module 3-34V to 4-35V Adjustable Power Supply Module QS-0324CBD-15W
    $ 1.94 $ 1.94
    DC-DC Converter 12V to 24V 3A-4A Step Up Module QS-1224CBDN-72W
    DC-DC Converter 12V to 24V 3A-4A Step Up Module QS-1224CBDN-72W
    $ 3.32 $ 3.32
    DC-DC LM2587 4-34V to 4-60V Step Up Module 5A Switching Current QS-0348CBDM-15W
    DC-DC LM2587 4-34V to 4-60V Step Up Module 5A Switching Current QS-0348CBDM-15W
    $ 4.84 $ 4.84
    DC-DC Step Up Module 5-32V to 5-50V XL6009/XL6019 Adjustable Module QS-0524CBDE-15W
    DC-DC Step Up Module 5-32V to 5-50V XL6009/XL6019 Adjustable Module QS-0524CBDE-15W
    $ 1.11 $ 1.11
    DC-DC Converter 150W 12V to 24V Step Up Module QS-1224CBD-100W
    DC-DC Converter 150W 12V to 24V Step Up Module QS-1224CBD-100W
    $ 5.19 $ 5.19
    DC-DC Converter 24V to 12V Step Down Power Supply Module DC 7-32V Input QS-2405CCBD-12A
    DC-DC Converter 24V to 12V Step Down Power Supply Module DC 7-32V Input QS-2405CCBD-12A
    $ 2.77 $ 2.77

    Brand: QSKJ

    Model: QS-2405CBD-6A

    Product Description:

    It is a 100W Charger/Adapter/Power Supply Module, Input Voltage: DC 5.5~28V (input voltage must be 2V higher than output voltage.), Output Voltage: DC 0.6~25V (Adjustable), Output Current: Rated 6A, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, LED lights, Fan, intercom and monitor system, etc.

    Parameters:

    • Module parameters: non-isolated step-down module (Buck)

    • Rectifier mode: synchronous rectification

    • Input Voltage: DC 5.5~28V (input voltage must be 2V higher than output voltage.)

    • Output Voltage: DC 0.6~25V (Adjustable)

    • Output Current: Rated 6A

    • Output power: 100W (MAX) (example: Output 20V 5A)

    • Conversion Efficiency: up to 97% (the higher the output voltage, the higher the efficiency)

    • Soft-start time: about 500mS

    • Output Ripple: 1% (MAX) 20M bandwidth

    • Operating temperature: industrial grade (-40 °C to +85 °C) ( please install heatsink or low power use if the ambient temperature over 40 °C)

    • Full load temperature rise: 40 ° C

    • Load Regulation: ± 1%

    • Voltage Regulation: ± 2%

    • Dynamic response speed: 5% 200u

    • Short circuit protection: sustainable, self-recovery.

    • Input polarity protection: None

    Test for Reference:

    • Input 7.00V 1.449A Output 4.917V 1.998A 9.823W Efficiency 96.85%

    • Input 7.00V 3.627A Output 4.887V 4.970A 24.28W Efficiency 95.63%

    • Input 12.00V 1.358A Output 5.097V 2.998A 15.28W Efficiency 93.77%

    • Input 12.00V 2.253A Output 5.079V 4.970A 25.24W Efficiency 93.36%

    • Input 24.00V 2.649A Output 12.02V 4.969A 59.77W Efficiency 94.01%

    • Input 24.00V 2.301A Output 17.83V 2.999A 53.48W Efficiency 96.84%

    • Input 22.00V 4.671A Output 20.06V 4.970A 99.69W Efficiency 97.01%

    Application:

    • 12V/24V Car Power Supply. connect 12/24V car power, get 0.6-25V voltage output.

    • High Power and Low Voltage. output could be 0.6V, MAX 5A.

    • Quick Charger. for charging 1.2V/2.4V/4.2V/8.4V/12V, output could be 6A.

    • Power Supply for electronic device.
