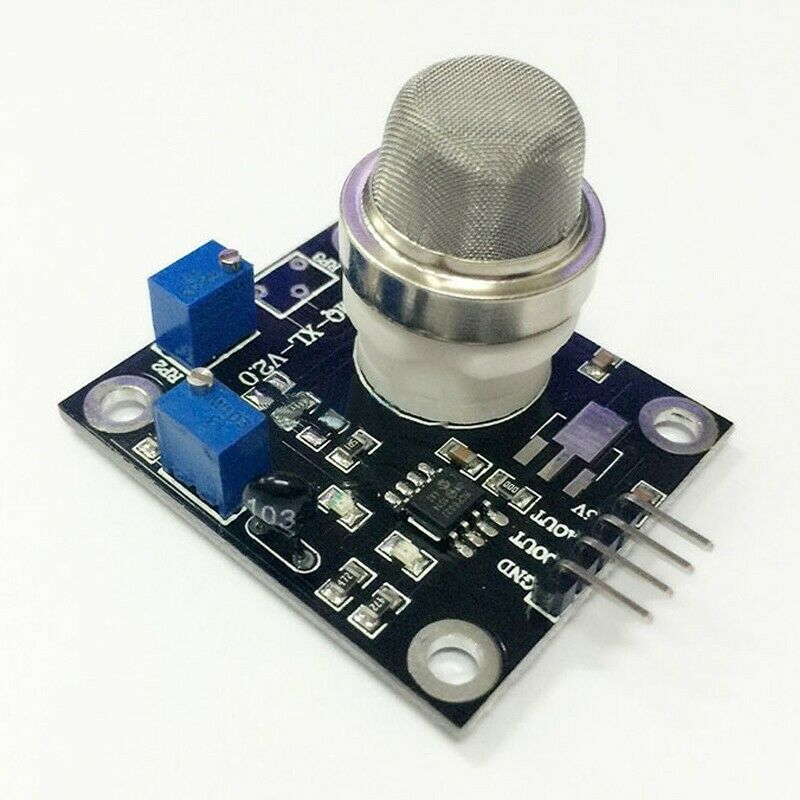

XD-46 MQ137 Ammonia NH3 Sensor Module Analog Level Signal Output

Features:

• With level signal output and alarm signal indicator

• With analog signal output, voltage range: 0-5V

• Effective low level output signal can be used to drive PNP transistors. And it can be connected to the OP port of micro-controller

• The analog output voltage increases with the increase of the concentration. The higher the concentration, the higher the voltage

• High sensitivity to ammonia, trimethylamine and ethanolamine gases

• Long service life and reliable stability

• Fast to response and recover after preheating

• With mounting holes, it is convenient for fix and install

• Plug-to-play probe for easy testing

• With temperature compensation function, it works perfectly

Parameters:

• Test Gas: Ammonia

• Detection Range: 5 to 500 ppm

• Working Voltage: DC 5V

• Working Current: 180mA

• Output Voltage: 0 to 5V

• Sensitivity: > 3%

• Circuit Voltage: ≤DC 5V

• Load Resistance: Adjustable 10K

• Component Power Consumption: ≤0.9W

• Life Span: 5 Years

• Working Temperature: -10 to 50℃ (Nominal temperature 20℃)

• Operating Humidity: 95%RH (Nominal humidity 65%RH)

• Response Time: ≤1S (Warm-up in 30-50mins)

• Recovery Time: ≤30S

• Size: 40 x 35 x 28mm

Applications: Mainly used for qualitative testing, suitable for home, industrial environment, portable gas detection equipment, and detection of ammonia-containing gas.
