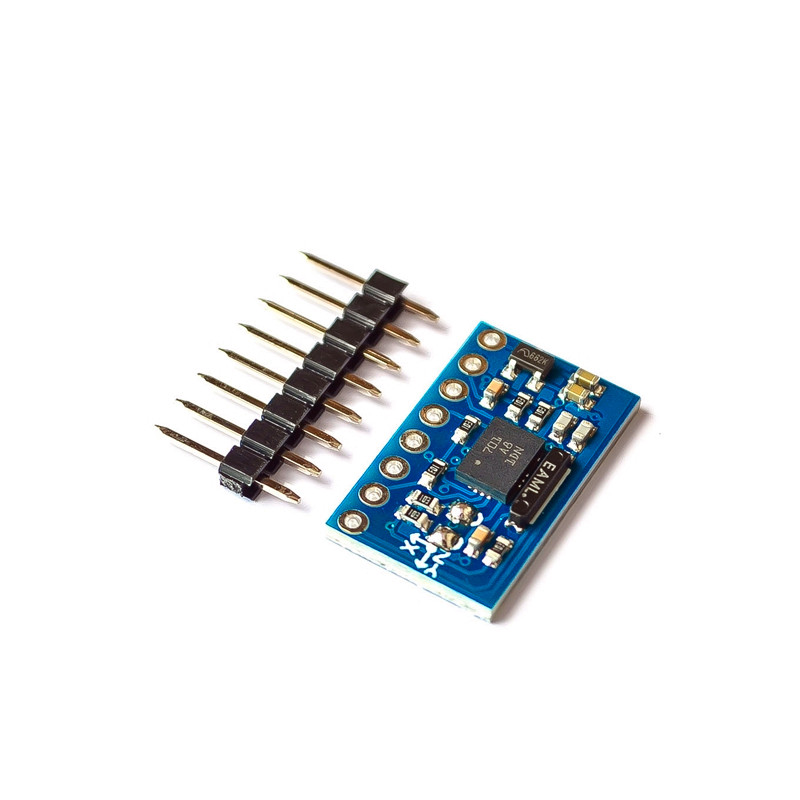

GY-BNO-055 Attitude Sensor 9 DOF 9-Axis Gyroscope Module

https://www.qskj.cc/web/image/product.template/6878/image_1920?unique=d8c7308
(0 review)

$ 9.76 9.76 USD $ 9.76

¥ 70.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    GY Modules
    SKU :
    1941960
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    GY-25 Serial Output Angle Data Directly MPU-6050 Module
    GY-25 Serial Output Angle Data Directly MPU-6050 Module
    $ 5.37 $ 5.37
    GY-471 3A MAX471 Range Current Sensor Module For arduino
    GY-471 3A MAX471 Range Current Sensor Module For arduino
    $ 1.53 $ 1.53
    ADXL345 GY-29 Three-axis Digital Tilt Angle Module /Gravity Angle Sensor
    ADXL345 GY-29 Three-axis Digital Tilt Angle Module /Gravity Angle Sensor
    $ 3.84 $ 3.84
    GY-81 Flight Control Module 10DOF ITG3200/ITG3205 BMA180 HMC5883L
    GY-81 Flight Control Module 10DOF ITG3200/ITG3205 BMA180 HMC5883L
    $ 23.01 $ 23.01
    GY-9255 MPU9255 Gyroscope Accelerometer Magnetic Field Sensor Module
    GY-9255 MPU9255 Gyroscope Accelerometer Magnetic Field Sensor Module
    $ 5.83 $ 5.83
    GY-362 ADXL362 3axis Accelerometer Sensor Module
    GY-362 ADXL362 3axis Accelerometer Sensor Module
    $ 4.14 $ 4.14

    Parameters:

    • Module Model: GY-BNO055

    • Use the chip: BNO-055

    • Power supply: 3-5v (internal low voltage regulator)

    • Communication method: standard IIC / serial communication protocol

    • Communication: Module size 12mm * 20mm

    Application:

    Bosch Sensortec BNO055 Intelligent 9-Axis Absolute Orientation Sensor is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit ARM Cortex M0+ microcontroller running Bosch Sensortec sensor fusion software, in a single package. The corresponding chip-sets are integrated into one single 28-pin LGA 3.8mm x 5.2mm x 1.1mm housing. For optimum system integration the BNO055 is equipped with digital bidirectional I2C and UART interfaces. The I2C interface can be programmed to run with the HID-I2C protocol turning the BNO055 into a plug-and-play sensor hub solution for devices running the Windows 8.0 or 8.1 operating system.
