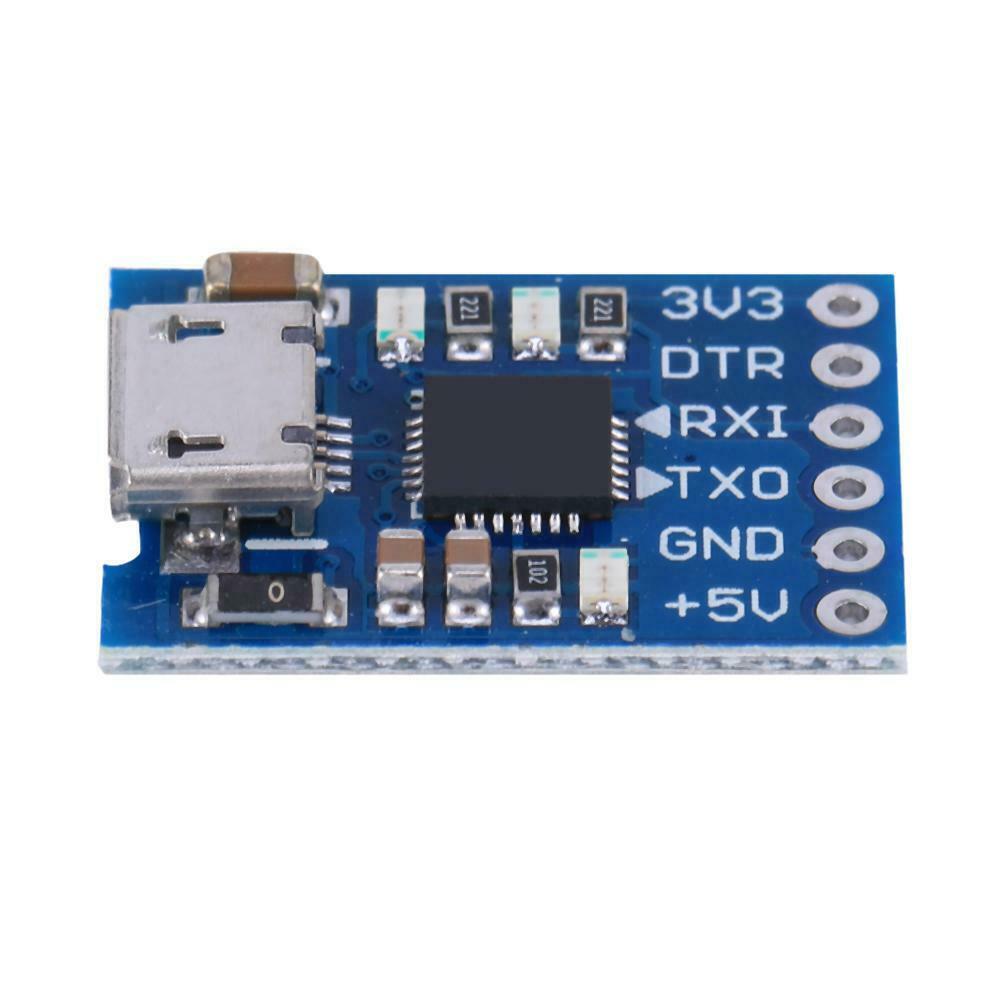

E16 CP2102 USB to UART TTL Module Board 6 Pin Serial Converter STC Downloader

Features:

• Built-in USB transceiver, no external circuit breaker.

• Built-in clock circuit without external circuit breaker.

• Built-in power-on reset circuit.

• On-chip voltage regulation can output 3.3V voltage.

• Compliance with USB2.0 Specification.

• Suspend pin supports USB status suspension.

• The asynchronous serial data bus is compatible with all handshake and modulator interface signals.

• Supported data formats are data bits 8, stop bits 1, 2 and check bits.

• Built-in 512-byte receiving buffer and 512-byte sending buffer.

• Support hardware or X-ON/X-OFF handshake.

Parameters:

• Communication format support: 1) 5,6,7,8 bits; 2) 1,1.5,2 stop bits; 3) odd, even, mark, space, none check

• Support operating systems: windows 8.1/7/vista/xp/98, for Mac OS-X/OS-9, Linux

• USB socket interface is MICRO MINI-USB socket

• Module size: 20mm*16mm*4mm/0.78*0.62*0.15''

• Packaging size: 80mm*60mm*4mm/3.14*2.36*0.15''
