4S 12A 14.8V 16.8V 18650 Lithium Battery Protection Board 4 Cells Li-ion Lipo Polymer Charger Protection BMS/PCM/PCB Module

Price:

$ 0.83
USD
  2. Shop
  3. Battery & Cases
  4. 4S 12A 14.8V 16.8V 18650 Lithium Battery Protection Board 4 Cells Li-ion Lipo Polymer Charger Protection BMS/PCM/PCB Module
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.07
$ 1.07
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.15
$ 5.15

4S 12A 14.8V 16.8V 18650 Lithium Battery Protection Board 4 Cells Li-ion Lipo Polymer Charger Protection BMS/PCM/PCB Module

https://www.qskj.cc/web/image/product.template/6997/image_1920?unique=d8c7308
(0 review)


JH-88586-JH-886109-3.7V

$ 1.52 1.52 USD $ 1.52

¥ 11.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Battery & Cases
    SKU :
    2044045
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    1x 2x 18650 Series Batteries Holder Box Storage Case Container With Bronze Pins
    1x 2x 18650 Series Batteries Holder Box Storage Case Container With Bronze Pins
    $ 1.44 $ 1.44
    3.6V 60mAh 2 Pin Nickel Hydrogen Rechargeable Battery
    3.6V 60mAh 2 Pin Nickel Hydrogen Rechargeable Battery
    $ 0.83 $ 0.83

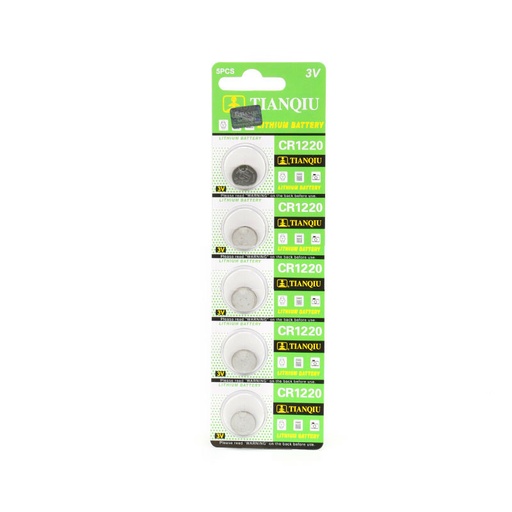

    CR1220 3V Coin Cell Battery lot(5 pcs)
    CR1220 3V Coin Cell Battery lot(5 pcs)
    $ 0.97 $ 0.97
    Wire Leaded Battery Holder Case Box Without Cover For 2 x D Size 3V Batteries
    Wire Leaded Battery Holder Case Box Without Cover For 2 x D Size 3V Batteries
    $ 0.55 $ 0.55
    Durable Battery Storage Box Hard Plastic Battery Case Holder For 4x AA 4xAAA lot(10 pcs)
    Durable Battery Storage Box Hard Plastic Battery Case Holder For 4x AA 4xAAA lot(10 pcs)
    $ 1.66 $ 1.66
    AG13 L1154 303 V303 RW32 357A LR44H 1.5V Coin Button Cell Battery lot(10 pcs)
    AG13 L1154 303 V303 RW32 357A LR44H 1.5V Coin Button Cell Battery lot(10 pcs)
    $ 0.83 $ 0.83

    Parameters:

    • Model: Long HX-4S-A01

    • Short section HX-4S-A10

    • Short Size: 65 * 17 * 3.0mm

    • Overcharge voltage range: 4.25-4.35v ± 0

    • Overpressure voltage range: 2.3-3.0v ± 0.05v

    • Upper working current: 6-8A

    • Operating temperature: -40 --- +50 ℃

    • Upper limit instantaneous current: 12A

    • Storage conditions: -40-- +80 ℃

    • Quiescent current: less than 30uA

    • Effective life: more than 50,000 hours

    • Internal resistance: less than 100mΩ

    • Short circuit protection: can be protected, need to charge recovery

    • Charging voltage: 16.8V-17V

    • The protection board device description: components for the S-8254AA protection chip and AO4407 * 4.
