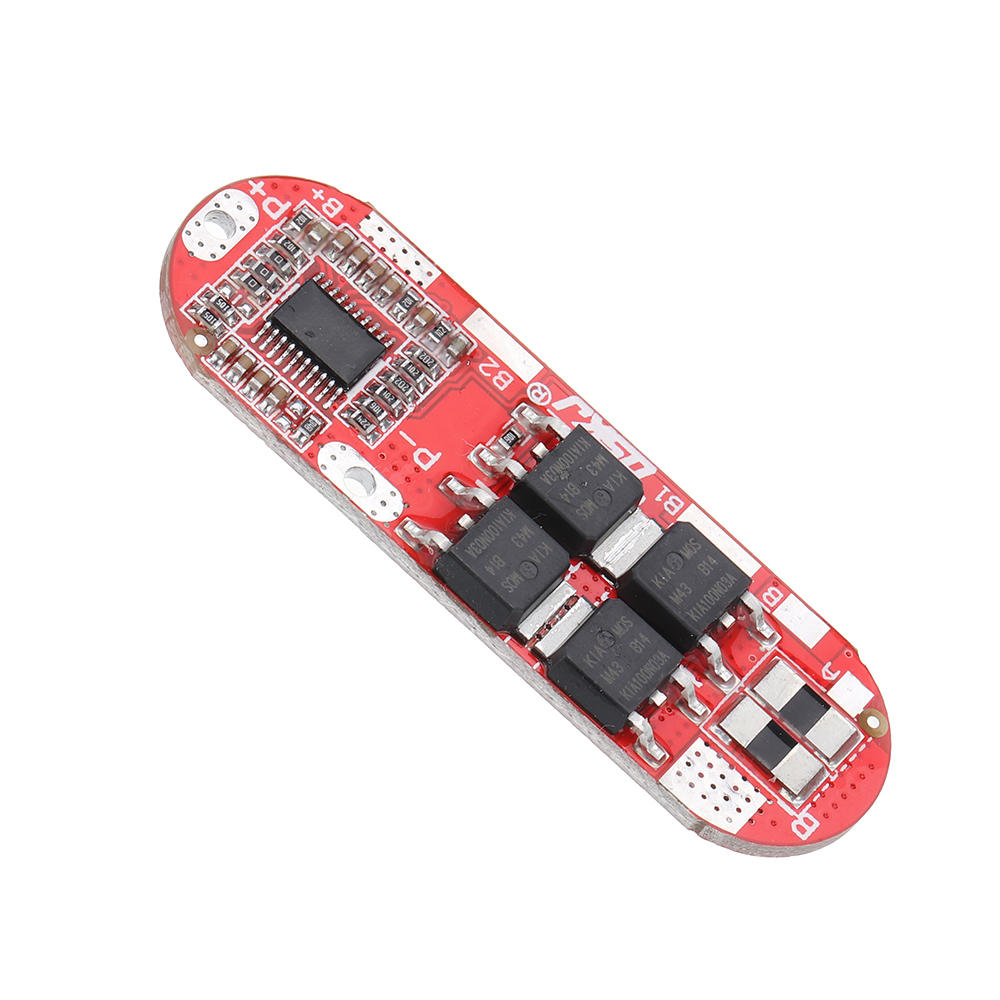

3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB QS-B405ANL-25A

Price:

$ 2.49
USD
  2. Shop
  3. 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB QS-B405ANL-25A
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.07
$ 1.07
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.15
$ 5.15

3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB QS-B405ANL-25A

https://www.qskj.cc/web/image/product.template/7003/image_1920?unique=f4462d6
(0 review)

$ 2.49 2.49 USD $ 2.49

¥ 18.00

Not Available For Sale

  • Type

This combination does not exist.

Contact Us
Categories :
Battery Protection Board(BMS) , Electrical Tools BMS
SKU :
2044309
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
1/2 Series Large Current Ternary PCB Lithium Battery Protection Board QS-B401ANL-20A/QS-B402ANL-25A
1/2 Series Large Current Ternary PCB Lithium Battery Protection Board QS-B401ANL-20A/QS-B402ANL-25A
$ 1.25 $ 1.25
5S 18V 21V 65A BMS 21700 Lipo Battery Screwdriver Charger Protection Board For Angle Grinder/electric Drill/wrench /hammer QS-B105DY21-60A
5S 18V 21V 65A BMS 21700 Lipo Battery Screwdriver Charger Protection Board For Angle Grinder/electric Drill/wrench /hammer QS-B105DY21-60A
$ 4.84 $ 4.84
6-17S BMS 24V 36V 48V 60V 35-150A Polymer Lithium/Ternary Lithium/ Iron Phosphate/LiFePo4 Battery Protection Board
6-17S BMS 24V 36V 48V 60V 35-150A Polymer Lithium/Ternary Lithium/ Iron Phosphate/LiFePo4 Battery Protection Board
$ 20.75 $ 20.75
3S 4S 5S 12V 120A Ternary Li-ion Lipo LifePo4 Lithium Iron Phosphate Protection Board W Balance BMS High Current Inverter Motorcycle car start UPS QS-B305ABL-200A
3S 4S 5S 12V 120A Ternary Li-ion Lipo LifePo4 Lithium Iron Phosphate Protection Board W Balance BMS High Current Inverter Motorcycle car start UPS QS-B305ABL-200A
$ 19.37 $ 19.37
HX-2S-A2 2S 5A Li-ion Battery Protection Board
HX-2S-A2 2S 5A Li-ion Battery Protection Board
$ 0.83 $ 0.83
10S 36V Li-ion Lithium Battery BMS PCB PCM Power Protection Board For Electric Bicycle
10S 36V Li-ion Lithium Battery BMS PCB PCM Power Protection Board For Electric Bicycle
$ 2.49 $ 2.49

Specifications:

  • Single Cell overcharge protect voltage:  4.23 - 4.28V

  • Single Cell overcharge rotect recover voltage:  4.08 - 4.18

  • Overcharge protect delay:  0.5 - 1.5S

  • Single Cell over-discharge protect voltage:   2.72 - 2.88V

  • Single Cell over-discharge rotect recover voltage:   2.9 - 3.1V

  • Overcharge protect current:  60A

  • Over-discharge protect current: 60A

  • Over-discharge protectdelay: 0.5 - 1.5S

  • Temperature protect: YES

  • Disconnect protect: YES

  • Shortage protect: YES

  • Shortage delay: 100 - 600μS

  • Shortage protect recover: YES

  • Charging current:  25A

  • Discharging current: 25A

  • Charging voltage : 12.6V for 3S BMS board

  •                                 16.8V for 4S BMS board

  •                                 21V for 5S BMS board

You can change the Series by adjusting the oΩ resistor(or shortcut by tin) as bellow:


Package Included:

1 x 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board
