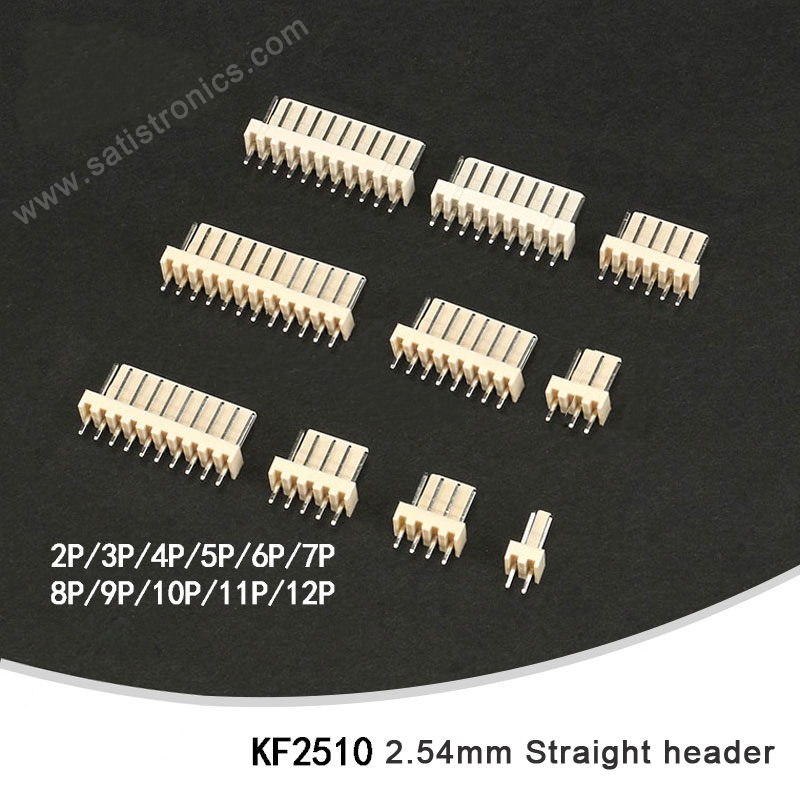

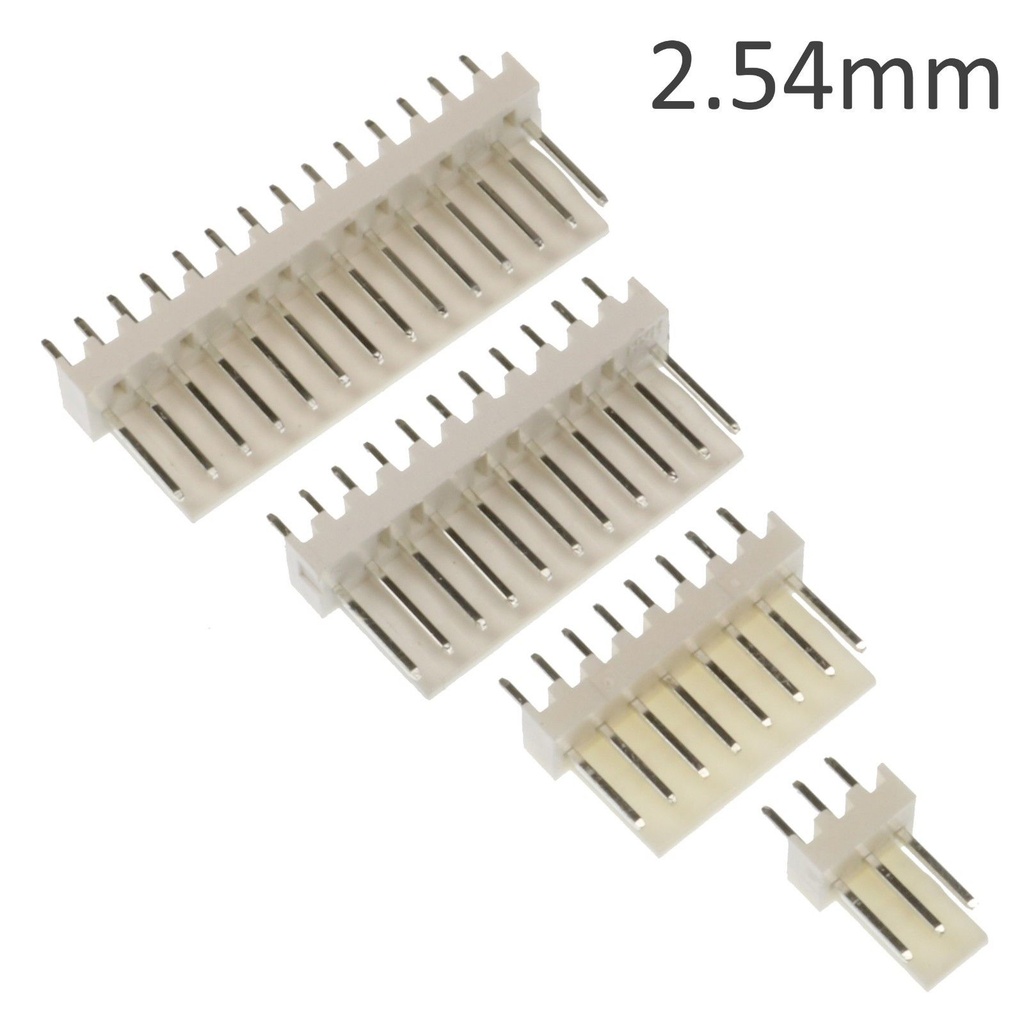

KF2510 2.54mm Straight Header 2-12 Pin Molex KK Style lot(10 pcs)

Price:

$ 1.03
USD
  2. Shop
  3. KF2510 2.54mm Straight Header 2-12 Pin Molex KK Style lot(10 pcs)
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
$ 1.06
$ 1.06
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
$ 5.12
$ 5.12

KF2510 2.54mm Straight Header 2-12 Pin Molex KK Style lot(10 pcs)

https://www.satistronics.com/web/image/product.template/3084/image_1920?unique=23c53c7
(0 review)

$ 1.57 1.57 USD $ 1.57

¥ 6.60

Not Available For Sale

($ 0.16 / Unit(s))
  • Type

This combination does not exist.

Contact Us
Categories :
Connector & Terminals
SKU :
180092
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
KF2EDG3.81-3P 3.81mm Space Terminal Connector lot(5 pcs)
KF2EDG3.81-3P 3.81mm Space Terminal Connector lot(5 pcs)
$ 1.10 $ 1.10
CH3.96MM Terminal Connector 2P 3P 4P 5P 6P 7P 8P 10P Connector Leads head 3.96mm lot(20 pcs)
CH3.96MM Terminal Connector 2P 3P 4P 5P 6P 7P 8P 10P Connector Leads head 3.96mm lot(20 pcs)
$ 1.00 $ 1.00
2.54mm Pitch Connector Cable XH2.54 Plug Line Length 20/10CM Red and White 2P/3P/4P/5P/6P/7P/8P/9P/10P/11P/12P lot(10 pcs)
2.54mm Pitch Connector Cable XH2.54 Plug Line Length 20/10CM Red and White 2P/3P/4P/5P/6P/7P/8P/9P/10P/11P/12P lot(10 pcs)
$ 1.69 $ 1.69
XH2.54 Female Housing 2P-16P Connector Plug Female Spacing 2.54mm lot(20 pcs)
XH2.54 Female Housing 2P-16P Connector Plug Female Spacing 2.54mm lot(20 pcs)
$ 0.39 $ 0.39
XH2.54 Male Curved Pin Header 2P-16P Connector Plug Male Spacing 2.54mm Right Angle lot(20 pcs)
XH2.54 Male Curved Pin Header 2P-16P Connector Plug Male Spacing 2.54mm Right Angle lot(20 pcs)
$ 0.79 $ 0.79
Audio Socket 3.5 EarPhone Stereo Socket Dual Track 301m with Nut lot(10 pcs)
Audio Socket 3.5 EarPhone Stereo Socket Dual Track 301m with Nut lot(10 pcs)
$ 1.03 $ 1.03
A common 2.54mm pitch board-to-wire connector series, compatible with Molex KK-254 series connectors.
  • Parameters:

Pin pitch: 2.54mm

  • Temperature range: -25 - +85 c
  • Maximum current: 3A AC/DC
  • Maximum voltage: 250V AC/DC
  • Wire sizes: 22-30 AWG
  • Insulation resistance: 1000M Ohm MIN
  • Contact resistance: 10m Ohm MAX
  • Withstanding voltage: 1000V AC/1 minute
  • Material: Nylon & tin plated phosphor bronze
