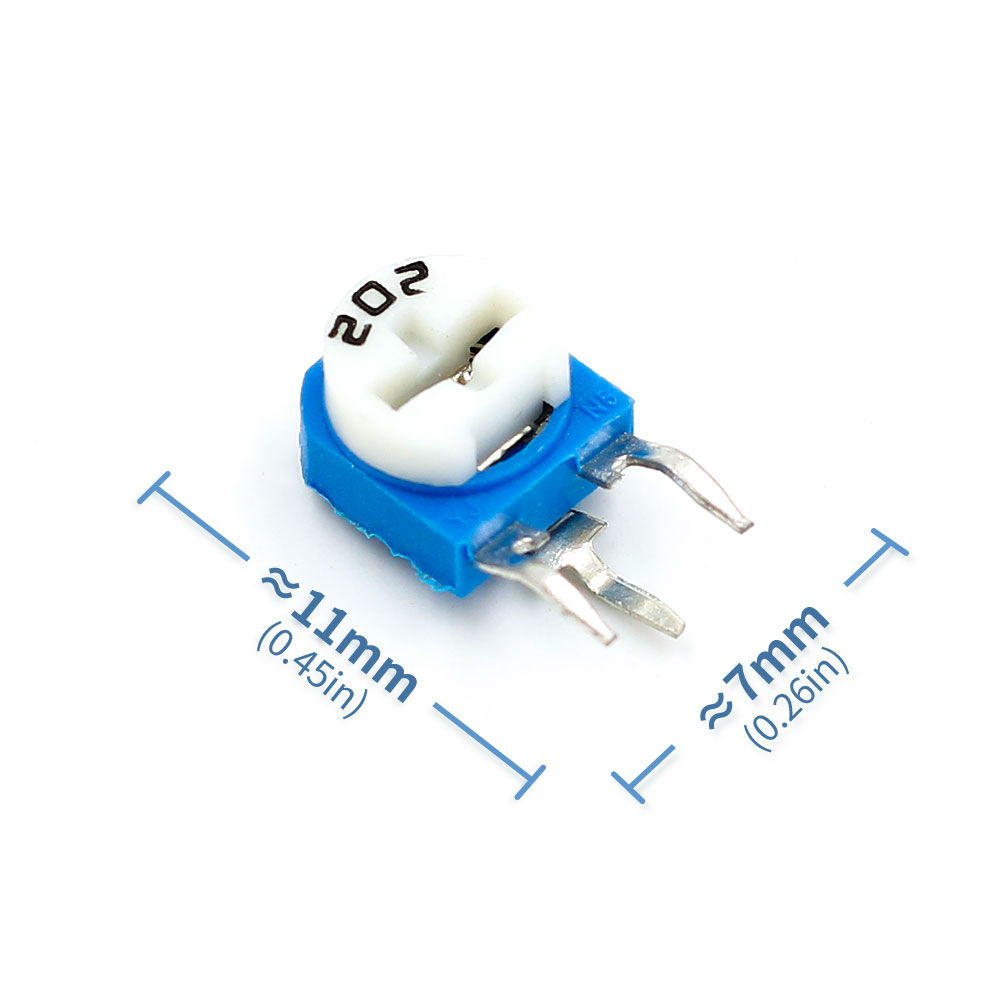

RM063 Vertical Adjustable Resistor Kit WH06 lot(10 pcs)
Categories :
ResistorsSKU :
189909
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
Carbon Film Resistor 1/2W 5% lot(500 pcs)
$ 1.98 $ 1.98
Thick Film Network Resistor 1/8W ±5% SIP-5 lot(10 pcs)
$ 0.49 $ 0.49
Carbon Film Resistor 2W 5% lot(200 pcs)
$ 2.28 $ 2.28
Metal Film Resistor 2W ±1% lot(50 pcs)
$ 0.61 $ 0.61
Technical parameters: performance:
Resistance range (Ohms): 100~1M
Resistance deviation: + 20%
Resistance change characteristics: B
Maximum use voltage: 50V
Rated: 0.1W
Residual resistance: no more than 5% of the nominal resistance, the maximum is not more than 30 ohms
Rotating life: after no-load rotation 100 cycles, the maximum resistance change is + 15%
Load life: the rated power is 3 hours, the maximum resistance change is + 5%
Mechanical characteristics:
Rotation angle: 200 degree + 20 degree
Rotational torque: 60~150g.cm
Stop strength: >500g.cm
Mechanical strength: resistance sheet can withstand 1kg pressure without rupture
