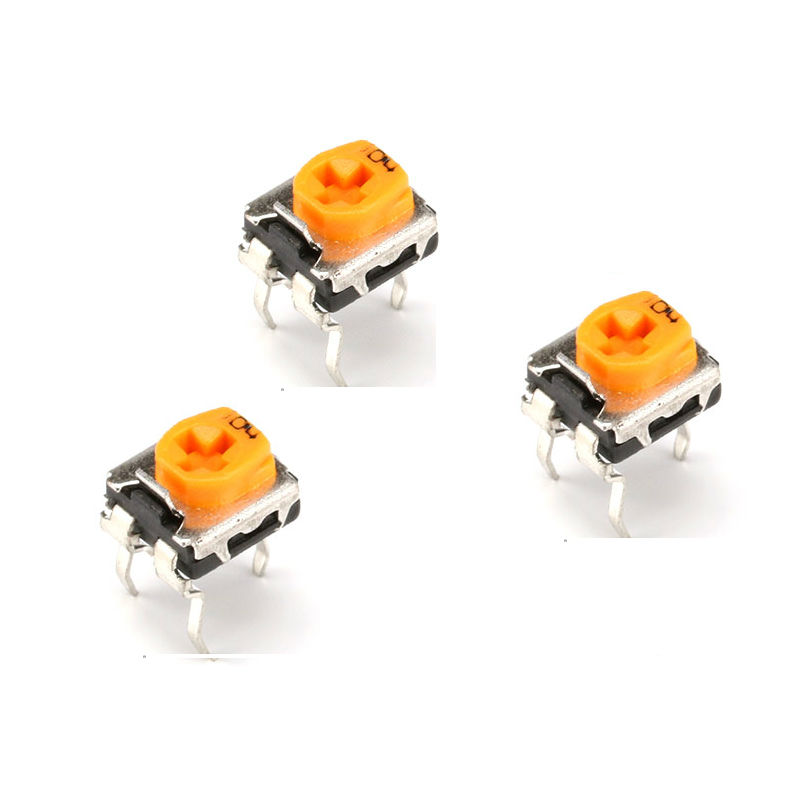

WH06-2C Horizontal Type Yellow Adjustable Potentiometer 1K(102) 10K(103) 100K(104) Ohm lot(10 pcs)
Categories :
Potentiometers | Trimmers | RheostatsSKU :
189938
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
WXD3-13-2W Multi Turn Wire Wound Control Potentiometer
$ 1.00 $ 1.00
X9C103S B45 Digital Potentiometer Module for Arduino
$ 1.38 $ 1.38
3590S-2 Rotary Wirewound Precision Potentiometer
$ 1.52 $ 1.52
Technical parameters: performance:
Resistance range (Ohms): 100~1M
Resistance deviation: + 20%
Resistance change characteristics: B
Maximum use voltage: 50V
Rated: 0.1W
Residual resistance: no more than 5% of the nominal resistance, the maximum is not more than 30 ohms
Rotating life: after no-load rotation 100 cycles, the maximum resistance change is + 15%
Load life: the rated power is 3 hours, the maximum resistance change is + 5%
Mechanical characteristics:
Rotation angle: 200 degree + 20 degree
Rotational torque: 60~150g.cm
Stop strength: >500g.cm
Mechanical strength: resistance sheet can withstand 1kg pressure without rupture
