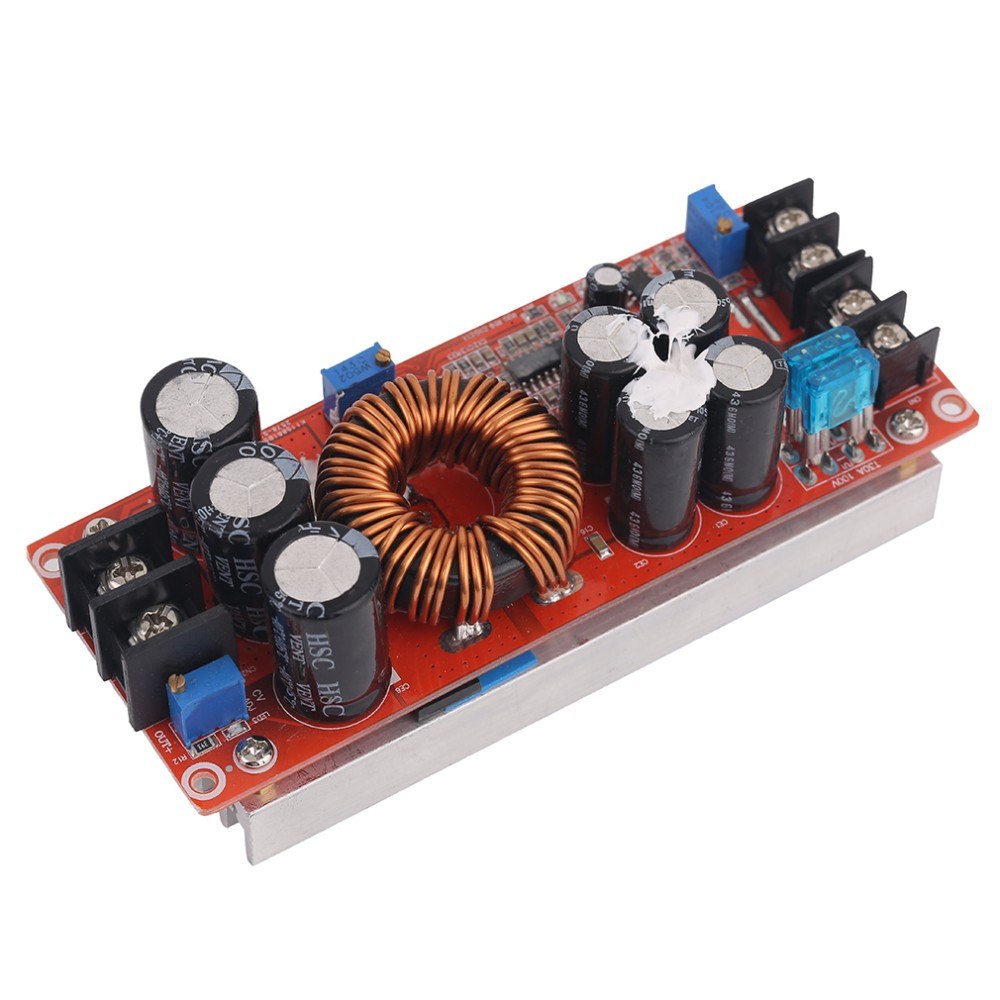

1200W DC-DC Boost Converter Power Supply Module With Large Heat Sink Design

Price:

$ 3.65
USD
  2. Shop
  3. 1200W DC-DC Boost Converter Power Supply Module With Large Heat Sink Design
110W 18V Monocrystalline Folding Solar Panel Battery Charger
110W 18V Monocrystalline Folding Solar Panel Battery Charger
$ 155.23
$ 155.23
1206 1% Chip Resistors Assortment Kit 0Ω - 2MΩ 40 values*20
1206 1% Chip Resistors Assortment Kit 0Ω - 2MΩ 40 values*20
$ 9.10
$ 9.10

1200W DC-DC Boost Converter Power Supply Module With Large Heat Sink Design

https://www.qskj.cc/web/image/product.template/6077/image_1920?unique=fb4d6cf
(0 review)

$ 15.22 15.22 USD $ 15.22

¥ 110.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    Power Modules
    SKU :
    180650
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Free delivery on all orders
    You may also like
    XL6009 DC-DC Adjustable Step-up Boost Power Converter Board Module for Arduino
    XL6009 DC-DC Adjustable Step-up Boost Power Converter Board Module for Arduino
    $ 1.05 $ 1.05
    L298N Dual Channel DC Motor Driver Module 2.5A PWM Speed Control
    L298N Dual Channel DC Motor Driver Module 2.5A PWM Speed Control
    $ 1.16 $ 1.16
    XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter
    XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter
    $ 3.50 $ 3.50
    4WD L293D Smart Motor Driver Module for Arduino
    4WD L293D Smart Motor Driver Module for Arduino
    $ 4.87 $ 4.87
    4A 4/75/24V to 0/93/18V KJ369 DC DC Step Down Power Module
    4A 4/75/24V to 0/93/18V KJ369 DC DC Step Down Power Module
    $ 2.44 $ 2.44
    DC-DC Booster step up module Converter Regulated Power Supply+VoltMeter 3~35V to 3.5~35V
    DC-DC Booster step up module Converter Regulated Power Supply+VoltMeter 3~35V to 3.5~35V
    $ 3.65 $ 3.65

    Parameters:

    • Input voltage: 8-60V
    • Input current: 20A
    • Quiescent current: 15mA(12V liter 20V, the output voltage, the higher the current will increase too quiet)
    • Output voltage: 12-80V continuously adjustable
    • Output current: 20A MAX over 15A, please enhance heat dissipation(input, output pressure related, the greater the pressure the smaller the output current)
    • Constant Range: 0.5-20A
    • Working temperature: -40°~85°
    • Operating frequency: 150KHZ
    • Conversion efficiency: Up to 95%
    • Overcurrent protection: Yes
    • Short circuit protection: Yes
    • Input reverse polarity protection: None
    • Output Counter filling: Yes
    • Installation: four 3mm screws
    • Connection: Solderless terminals output
    • Product size: Approx. 130 x 52 x 46mm
