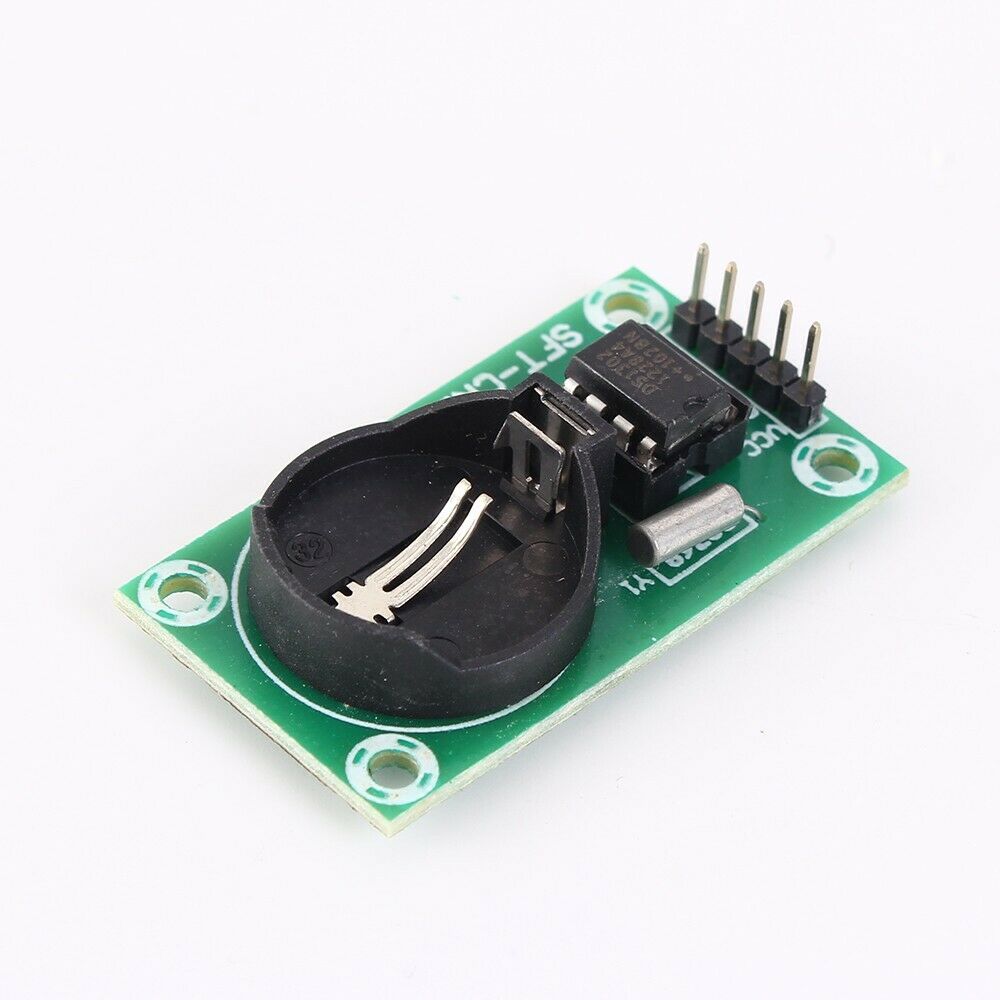

DS1302 5 Pin Real Time Clock Module with CR2032 Battery

Features:

• The DS1302 module is driven by a DALLAS trickle-charge timekeeping chip.  It contains a real-time clock/calendar and 31 bytes of static RAM. It communicates with a microprocessor via a simple 3 wire serial interface. The real-time clock/calendar provides seconds, minutes, hours, day, date, month, and year information until the year 2100. The end of  the month date is automatically adjusted for months with fewer than 31 days and includes corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. Interfacing the DS1302 module with a microprocessor is simplified by using synchronous serial communication. Only three wires are required to communicate with the clock/RAM: CE, I/O (data line), and SCLK (serial clock). Data can be transferred to and from the clock/RAM 1 byte at a time or in a burst of up to 31 bytes.

• The DS1302 is designed to operate on very low power and retain data and clock information on less than 1μW. The DS1302  is the successor to the DS1202. In addition to the basic timekeeping functions of the DS1202, the DS1302 has the additional features of dual power pins for primary and backup power supplies, programmable trickle charger for VCC1, and seven additional bytes of scratchpad memory. It comes with a fitted CR2032 battery.

Parameters:

• Supplied with fitted CR2032 battery.

• 31 bytes of  Battery-Backed General-Purpose RAM

• Serial I/O for Minimum Pin Count

• 2.0V to 5.5V Full Operation

• Uses Less than 300nA at 2.0V

• Single-Byte or Multiple-Byte (Burst Mode)

• Data Transfer for Read or Write of Clock or RAM Data

• Simple 3-Wire Interface

• TTL-Compatible (VCC = 5V)

• Optional Industrial TemperatureRange: -40°C to +85°C

• DS1202 Compatible

• PCB size: 44mm * 23mm * 1.6mm

• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
