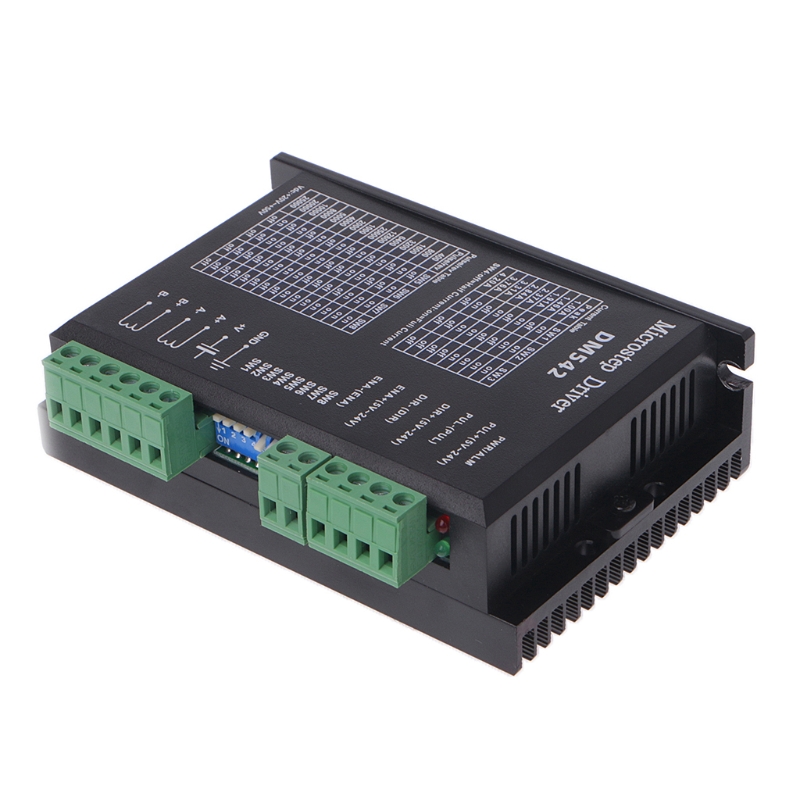

DM542 Stepper Motor Driver For 57 86 Series 2-phase

Description

• The driver uses discrete components structure, as long as no over voltage and wiring is right, please rest assured that two-phase 4-wire, 6-wire, 8-wire can be used. 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used

Feature:

• 20KHz chopping frequency

• Optical isolation signal input

• Output current DIP switch is adjustable

• Bipolar constant current chopping method

• High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200

• TTL input signal compatible,while accepting differential signal input

Specifications:

• Power supply:DC 24-60 (V)

• Current maximum:4.5A

• Output phase current:1.5A-4.5A

• Logic input current:10-20mA

• Operating temperature:-15°—+45°

• Size:11.7*8.5cm/4.61*3.35inch
