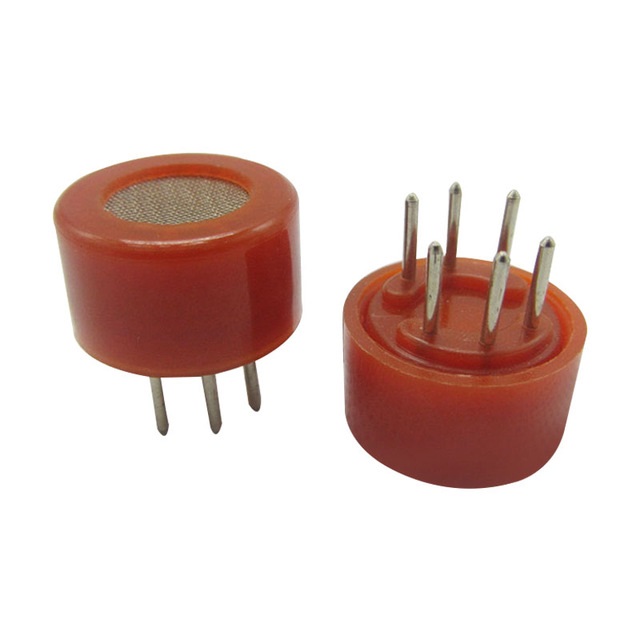

MQ-3 Smoke Sensor Drinking & Ethanol Vapor Detection For Alcohol

Application

• Used for the drink detection of the vehicle and other risks, ethanol vapor detection.

Specification

• Gas: Alcohol

• Detection Range: 10~1000ppmm alcohol

• Characteristics Gas: 125ppmm alcohol

• Sensitivity: R in air/Rin typical gas≥5

• Sensing Resistance: 1~20KΩ in air

• Response Time: ≤ 10s (70% Response)

• Recovery Time: ≤ 30s (70% Response)

• Heating Resistance: 31Ω ± 3Ω

• Heating Current: ≤ 180mA

• Heating Voltage: 5.0V ± 0.2V

• Heating Power: ≤ 900mW

• Measuring Voltage: ≤ 24V

• Working Conditions

• Temperature: -20 Celsius ~ +55  Celsius

• Humidity: ≤ 95% RH

• Environmental Oxygen Content: 21%

Storage Conditions

• Temperature: -20  Celsius   ~ +70  Celsius

• Humidity: ≤ 70% RH
