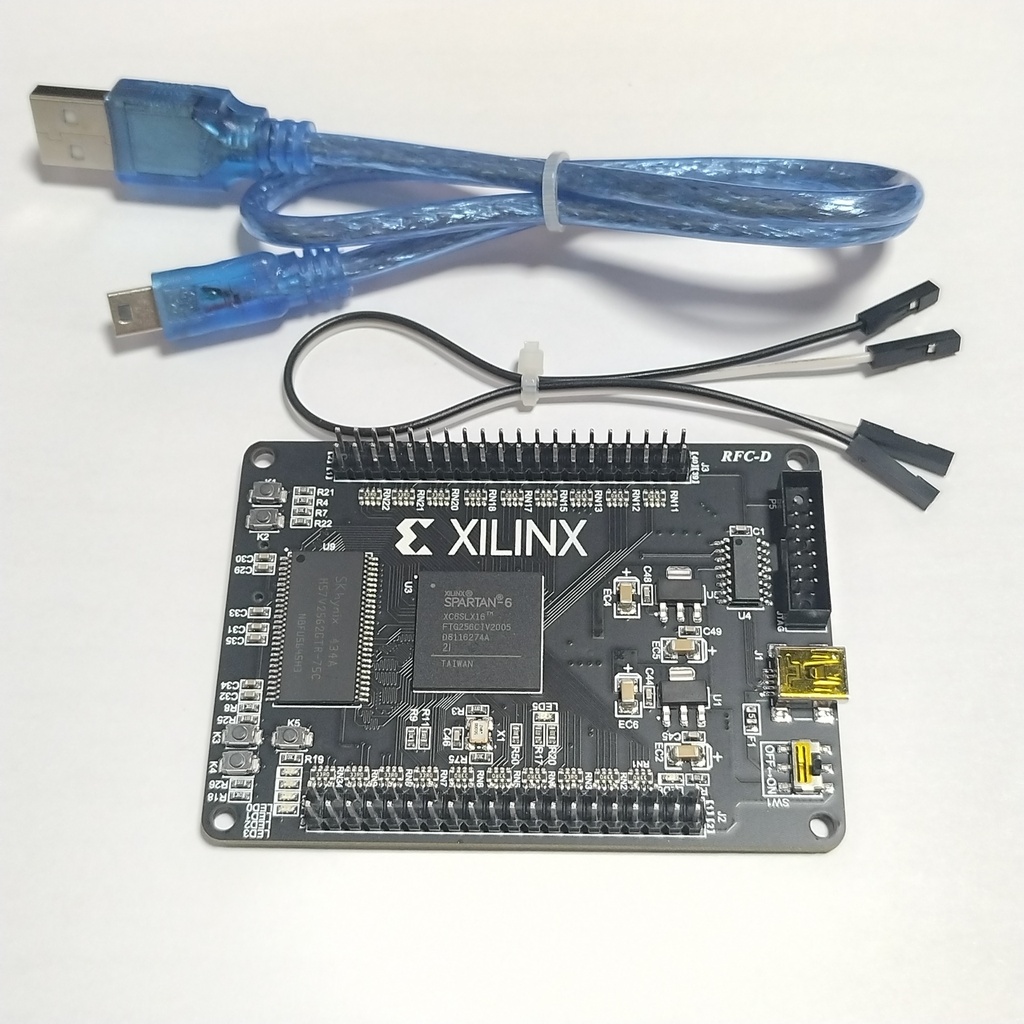

XILINX Spartan-6 Spartan6 FPGA Development Board XC6SLX16-2FTG256I Core Board RFC-D
Categories :
FPGA DevelopmentSKU :
181171
100% original guarantee
Return within 30days
Free delivery on all orders
You may also like
Xilinx FPGA Spartan6 Spartan-6 Core Board XC6SLX16 DDR3 256MB
$ 35.00 $ 35.00
Xilinx Platform Cable USB FPGA CPLD USB download cable
$ 32.51 $ 32.51
Xilinx Platform Cable USB FPGA CPLD USB download cable HS2 DLC10
$ 33.21 $ 33.21
Description:
- Onboard XC6SLX16-2FTG256I chip and high-speed SDRAM, can be adapted to external ultra-high-speed ADC for various types of analog signal acquisition, processing and analysis.
- Main chip: XILINX FPGA Spartan6 XC6SLX16-2FTG256I , 256 pin, BGA package. The chip with a wealth of block RAM resources, the number of logical units of the chip is 14,579.
- FPGA external clock frequency: 50MHz.
- The development board with Flash chip, 2MB of storage capacity.
- The development board with 32MB SDRAM chip
- The development board leads to 2 * 60p, 2.54mm pitch pin, can be used to connect peripherals.
- Onboard 2 user keys, 4 LEDs.
- Onboard 1 * 6pin 2.54mm JTAG interface, support Xilinx USB Platform Cable download debugger.
- Product model: RFC-D
- Chip model: XC6SLX16-2FTG2561
- Onboard clock: 50MHz active crystal oscillator
- Communication interface: USB TO UART
- Configuration chip: M25P16
- Onboard power supply: DC5V<0.5A
- Size: 83MM*59MM
- Extension ports:
- Extended I0: 2*40
- Pin spacing: 2.54MM
- Lead GPIO: 68
- Lead out 5V power supply: 2 pcs
- Lead to 3.3V power supply: 4 pcs
- Lead to GND: 6
